Factory-direct manufacturing delivering thermally broken, CE-marked aluminum exterior entries, expansive pivot assemblies, and insulated patio apertures. Manufactured under ISO 9001 quality management with comprehensive Declarations of Performance (DoP).
The European entrance systems landscape is undergoing an aggressive technical transition dictated by stringent energy legislation, the Carbon Border Adjustment Mechanism (CBAM), and smart building automation protocols.
Procurement teams across Germany, the Netherlands, and Scandinavia are enforcing low-embodied-carbon mandates. Specifiers now demand Environmental Product Declarations (EPD) verifying hydro-electric smelted or minimum 75% recycled scrap content (post-consumer recycled aluminum). Bypassing future CBAM tariffs requires transparent supply-chain smelting disclosures down to the billet source.
With the UK's Future Homes Standard 2025 and Germany’s Gebäudeenergiegesetz (GEG) requiring overall building envelope U-values under 0.80 W/m²K, conventional standard entries are obsolete. B2B procurement is transitioning to deep thermal break systems featuring 34mm+ low-lambda polyamide insulation strips, warm-edge silicone glass spacers, and aerogel-filled insulated aluminum core panels.
High-value residential and commercial contracts now mandate native integration of concealed mechatronic locks (such as Winkhaus blueMatic or KFV Genius). Entrance assemblies must incorporate encrypted biometric fingerprint scanners, facial recognition cameras, and dry-contact relays compatible with KNX, Loxone, or Crestron building automation architectures directly from the OEM factory floor.
Examining the physics of modern architectural doors: finite element thermal modeling, zero-barrier universal accessibility (DIN 18040-2), and structural load calculation for monumental pivot portals.
| Performance Vector | Harmonised EU Standard | Technical Threshold / Benchmark | DERCHI Engineering Fulfillment |
|---|---|---|---|
| Thermal Transmittance (Ud) | EN ISO 10077-1 / EN ISO 10077-2 | ≤ 1.2 W/m²K (Passivhaus ≤ 0.80) | Multi-cavity PA66 GF25 thermal breaks with extruded cellular insulation cores achieving Ud down to 0.82 W/m²K on custom insulated panels. |
| Air Permeability | EN 1026 / EN 12207 | Class 3 to Class 4 (600 Pa test) | Continuous co-extruded EPDM vulcanized corner-welded gasket arrays ensuring air leakage < 0.75 m³/(h·m²) at Class 4 positive/negative pressure. |
| Watertightness | EN 1027 / EN 12208 | Class 7A to Class 9A (≥ 600 Pa) | Multi-tiered drainage channels with concealed gravity valve weep holes; successfully evaluated to Class 9A (600 Pa water spray) without internal moisture breach. |
| Wind Load Resistance | EN 12211 / EN 12210 | Class C3 to Class C5 (2000 Pa) | Reinforced 3.0mm primary wall thickness extrusions; frontal deflection < 1/300 at Class C5 test pressures for coastal and high-altitude European zones. |
| Burglar Intrusion Resistance | EN 1627 / EN 1630 (RC Classification) | RC2 minimum for private villas; RC3/RC4 | Anti-drill manganese plates, hook-type multi-point motorized shoot-bolts, P6B laminated security glass, and heavy-duty 3D adjustable safety hinges. |
| Acoustic Attenuation (Rw) | EN ISO 10140-2 / EN ISO 717-1 | Rw ≥ 36 dB (Urban ≥ 42 dB) | Decoupled acoustic core infill paired with asymmetric sound-insulating PVB interlayers (e.g. 6mm Low-E + 16Ar + 44.2 Sound Reduction Glass), yielding up to 44 dB. |
Operating from Foshan, Guangdong—the epicentre of global precision aluminum engineering—DERCHI delivers full OEM/ODM manufacturing capability tailored for European commercial contractors, facade specialists, and high-end residential developers.
Equipped with state-of-the-art German CNC 4-axis profile machining centres, automated corner crimping stations, and multi-tier computerized vertical powder coating plants operating under Qualicoat Class 2 standards.
Proudly selected by veteran UK Schüco installation partners for multi-villa commercial packages. Our tolerance control (±0.5mm across frame diagonals) matches Europe's premier facade brands at exceptional factory-direct value.
Our dedicated in-house structural facade engineers supply complete CAD shop drawings, connection detail sections, dynamic anchor calculations, and IFC/Revit BIM models directly mapped to your project door schedule before manufacturing.
Reinforced fumigated steel-frame export crates with shock-absorbent EPE layers protect deliveries during ocean transit. Regular liner shipments to Rotterdam, Hamburg, Antwerp, and Felixstowe backed by proactive DDP/CIF handling.
Essential regulatory, testing, and operational guidance for general contractors, architectural specifiers, and facade importers sourcing from China.
DERCHI issues an official Declaration of Performance (DoP) compliant with the Construction Products Regulation (EU CPR No. 305/2011) and EN 14351-1:2006+A2:2016. Testing protocols are conducted via accredited third-party notified bodies (such as Ift Rosenheim benchmarks or equivalent ISO/IEC 17025 accredited labs). Each consignment carries permanent CE labeling detailing unique batch traceability, airtightness class, water tightness, and calibrated U-value data.

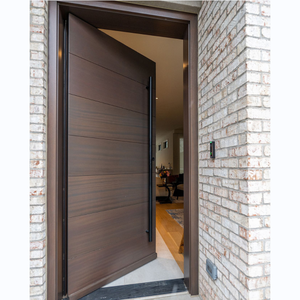

Yes. Large dark-colored aluminum exterior doors exposed to intense direct sunlight undergo differential expansion between inner and outer profiles (the bimetallic effect), causing operational binding. DERCHI mitigates this by utilizing patented split-insulation polyamide thermal break struts with gliding mechanical relief pins, paired with heavy-duty Dormakaba or FritsJurgens pivot bearings certified up to 500kg leaf weights and 4000mm heights.
For coastal installations within 5km of saline shorelines (e.g., Mediterranean, Brittany, or UK coastlines), we specify Qualicoat Seaside Class 2 pre-treatment (acidic etching with titanium-zirconium passivating wash) followed by architectural fluorocarbon (PVDF) 3-coat finishes or 25-micron anodic oxidation coatings. These assemblies guarantee over 3,000 hours of continuous acetic salt spray (AASS) resistance without surface pitting or filiform corrosion.
Following CAD shop drawing sign-off, mass production requires 25 to 35 business days. Doors are individually wrapped in anti-static PE foam, boxed with corner impact guards, and secured within custom heavy-gauge steel skeleton pallets tailored for side forklift unloading at European job sites. Sea transit to North Sea or Mediterranean base ports typically spans 28 to 34 days with full container load (FCL) GPS container tracking.
Submit your tender schedules, window & door schedules, or architectural elevations. Our technical facade team responds within 24 hours with itemized pricing, structural feasibility analyses, and certified performance profiles.
