Acoustic Engineering · Certified Rw 38dB - 48dB
Engineered multi-layer acoustic cores, precision perimeter compression sealing, and thermally broken architectural aluminium frames designed for luxury residential and commercial projects worldwide.
25+ Years Engineering Heritage · 180,000 m² Facility
Factory-Direct High STC Front Doors
Eliminate urban airborne noise, road transit rumble, and acoustic flanking through proven laboratory-tested construction.
Acoustic Engineering Breakdown
When international developers and specifiers search for high-performance soundproof entry doors, the core intention is resolving real-world environmental stress: traffic thoroughfares, rail rumble, flight corridors, and densely populated mixed-use perimeters. A standard security door acts as an echo chamber; an acoustic entry door is an engineered damped mechanical filter.
Sound reduction index (Rw) follows the acoustic mass law: doubling surface mass adds theoretical attenuation. However, solid heavy metal rings without internal dampening. Guangdong Dejiyoupin Doors and Windows Co., Ltd. solves this via multi-layer composite sandwiches: resilient viscoelastic dampening layers laminated between high-density aluminium skins to cancel resonance coincidence dips.
Acoustic waves act like pressurized fluids: a microscopic 1% unsealed air gap around the door frame leaks up to 50% of incoming acoustic energy, instantly degrading a laboratory-certified 45 dB leaf down to 28 dB on site. DERCHI incorporates triple continuous EPDM compression gaskets combined with heavy-duty automatic mechanical drop seals that deploy against low-profile thresholds.
Acoustics and thermal envelope conservation are intimately linked. High-density rock wool (120kg/m³), aerogel panels, and polyurethane insulation cores absorb broad-spectrum sound vibrations while simultaneously driving thermal transmittance values down to UD ≤ 0.85 W/(m²·K), meeting the stringent thermal requirements of modern European building regulations (GEG & UK Part L).
A heavy door leaf cannot seal uniformly under a single-point latch. DERCHI installs German-engineered multi-point deadbolt locking gear with anti-lift hooks. Operating the handle pulls the door leaf firmly against the frame across top, bottom, and lateral points, ensuring continuous acoustic gasket compression around the full geometric perimeter.
Acoustic Product Configurations
Every architectural application presents unique acoustic challenges. We have engineered four primary soundproof entry door series that integrate high-decibel attenuation into contemporary European aesthetics, tested according to EN ISO 717-1 and EN 14351-1 standards.

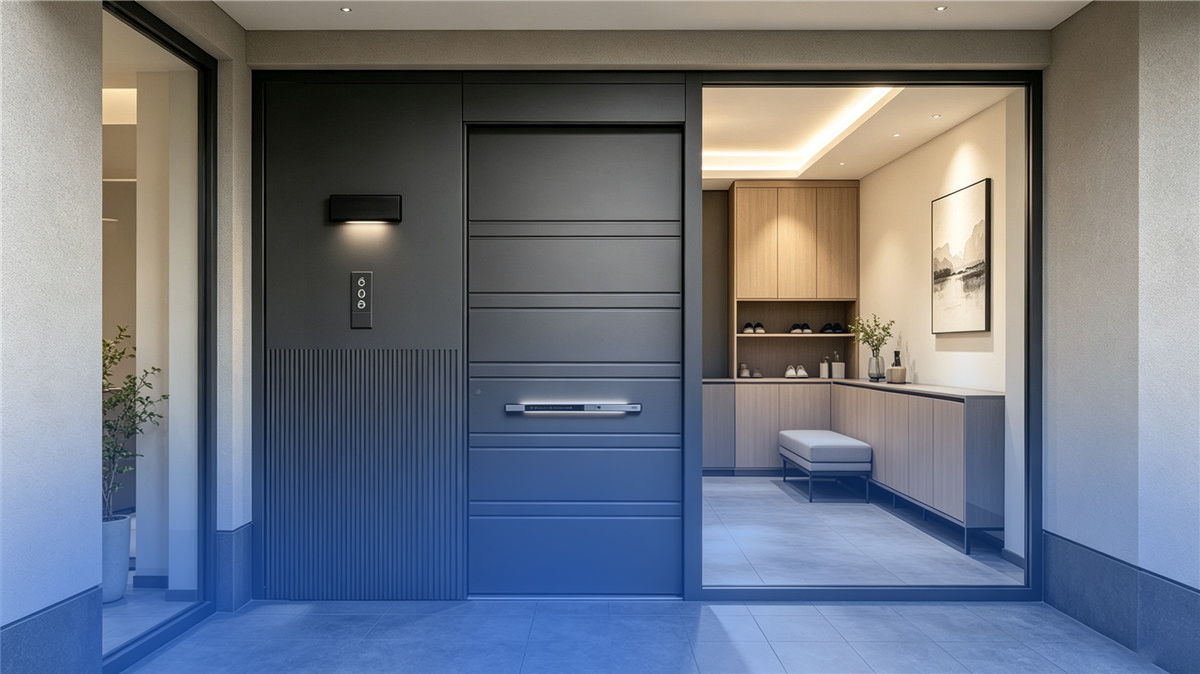

Engineered with multi-cavity polyamide thermal breaks, 3.0mm wall thickness aerospace-grade aluminium extrusions, and multi-layer constrained-layer sound dampening cores. Ideal for urban residences and coastal villas needing acoustic isolation with anti-corrosion RAL powder-coated finishes.
Explore System

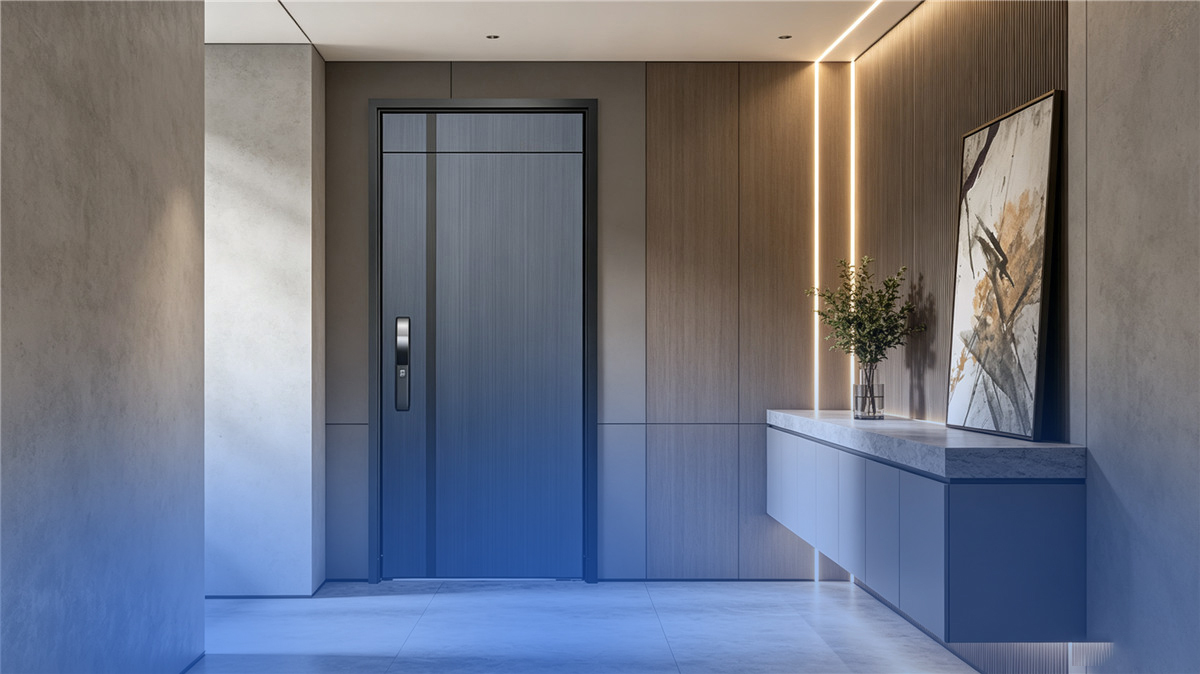

Combines high mass density SUS304/SUS316 exterior skins with interior viscoelastic constrained damping sheets and high-density acoustic rock wool cores. Engineered for commercial bank vaults, high-security embassy suites, and multi-family penthouse entrances where RC3/RC4 security matches acoustic silence.
Explore System

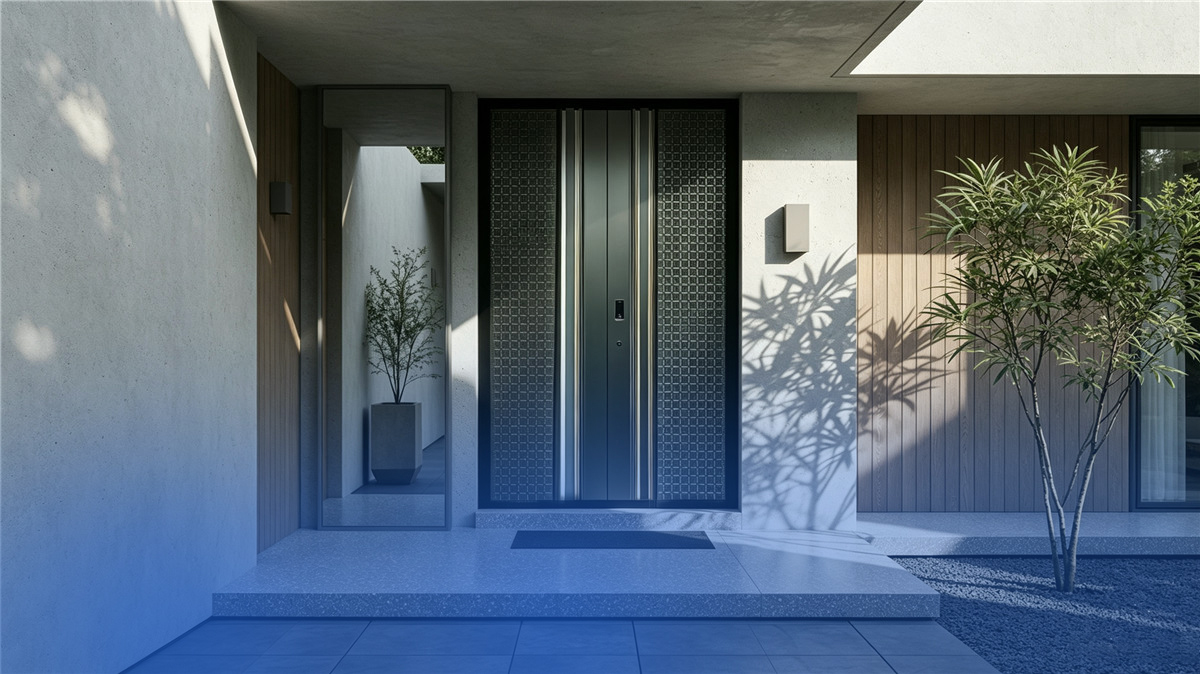

Features solid 8mm to 12mm precision cast relief facings. The non-uniform cellular structure of cast aluminium disrupts high-frequency sound wave penetration naturally, backed by dense composite dampening backings to stop low-frequency traffic vibrations in grand villas and luxury estates.
Explore System

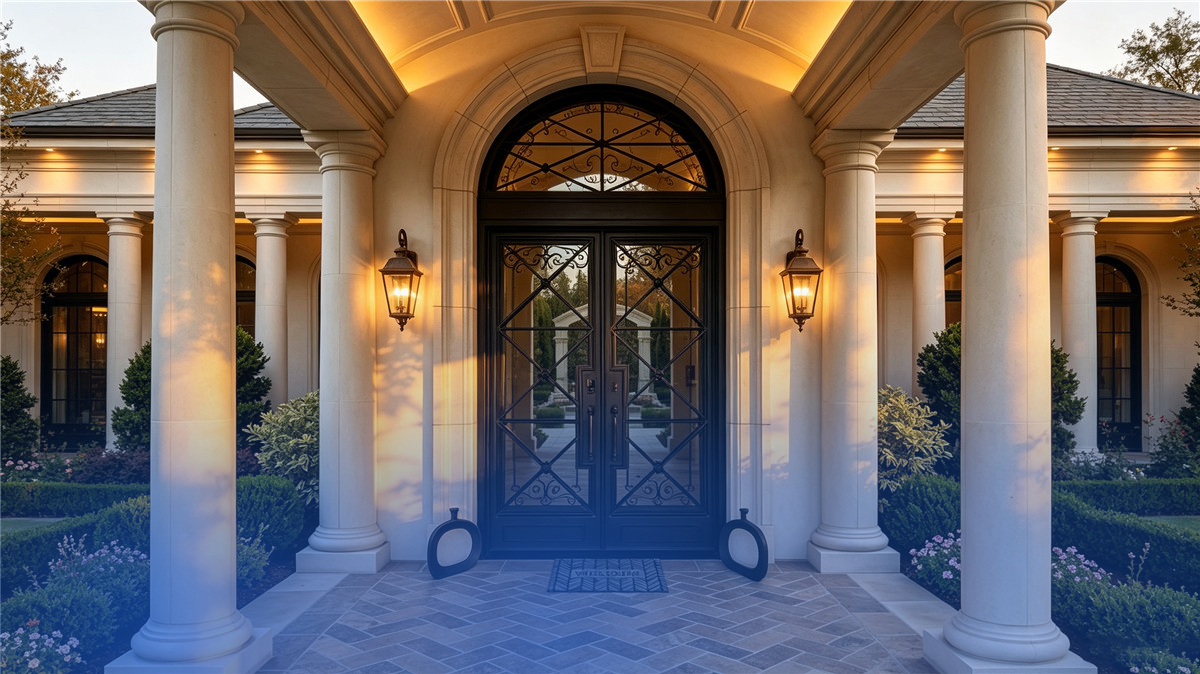

Architectural glass without acoustic sacrifice. Utilizes asymmetric double or triple-pane assemblies (e.g., 8mm toughened outer + 16mm argon cavity + 6.8mm laminated acoustic PVB inner) preventing critical frequency resonance and filling lobbies with daylight in utter acoustic tranquility.
Explore SystemEngineering Specification Matrix
International building codes demand verifiable empirical test data. When drafting procurement schedules, cross-referencing acoustic Rw/STC figures with mandatory mechanical benchmarks is critical to avoiding compliance liabilities during site inspections.
| Performance Parameter | International Standard | Acoustic & Structural Engineering Mechanism | Guangdong Dejiyoupin Factory Execution |
|---|---|---|---|
| Acoustic Attenuation (Rw / STC) | EN ISO 717-1 / ASTM E413 | Quantifies broadband decibel sound reduction index (100 Hz to 3150 Hz) across the full door assembly. | Laboratory-tested ratings ranging from Rw 38 dB to Rw 48 dB (C; Ctr parameters verified). |
| Air Permeability / Leakage | EN 12207 / ASTM E283 | Direct acoustic vector: sound flanking travels through air channels. Tight seals eliminate airborne sound paths. | Class 4 airtightness achieved with continuous co-extruded EPDM triple-perimeter gaskets. |
| Thermal Insulation (UD / U-Value) | EN ISO 10077-1 / 10077-2 | Multi-chamber profiles and mineral foam cores suppress thermal conduction and acoustic heat waves concurrently. | UD values down to 0.85 W/(m²·K), complying with German GEG and European passive house criteria. |
| Burglar / Forced Entry Resistance | EN 1627-1630 (RC2 to RC4) | Rigid anti-torsion profiles withstand crowbar attacks while maintaining airtight gasket pressure across years of use. | Multi-point mechanical latching bolts, integrated anti-drill cylinder shields, and internal steel reinforcement ribs. |
| Wind Load & Watertightness | EN 12210 / EN 12208 | Withstands structural buffeting on exposed sea fronts and high elevations without frame flexion or seal detachment. | Class C5 wind resistance and Class 9A (600 Pa) watertightness validated under continuous pneumatic testing. |
| Mechanical Durability Cycles | EN 1191 / EN 12400 | Repetitive opening cycles verify that heavy acoustic damping cores do not cause hinge sagging or frame deflection. | Class 8 certification: 200,000 continuous opening and closing cycles without acoustic seal displacement. |
Specification Guidance: Soundproof ratings are systemic metrics. Combining an Rw 45 dB door leaf with an improperly sealed subframe or a hollow threshold reduces the installed performance to under 30 dB. Consult our engineering department for CAD shop drawings detailing perimeter acoustic caulking and acoustic threshold interfaces.
Market Intelligence & Horizon Scanning
As urbanization intensifies and micro-living spaces merge with mixed-use transport hubs, the global market for soundproof doors is undergoing a seismic paradigm shift. What was once a niche recording studio specification has become a baseline requirement for Tier-1 real estate developments.
Municipalities across Europe, North America, and APAC are codifying strict ambient interior decibel limits (e.g., WHO guidelines recommending indoor noise levels < 30 dB LAeq for restorative sleep). Property funds actively pursue WELL Building Standard and LEED v4.1 credits, where exterior acoustic envelope performance directly dictates asset valuation and premium rent yields.
The historical conflict between motorized smart locks and high-compression acoustic seals is resolving. Next-generation soundproof entry doors integrate hidden motorized multi-point latches triggered by 3D facial recognition or encrypted building management systems (BMS). High-torque servomotors actively pull the door against high-density perimeter gaskets without requiring physical handle leverage.
Architects are specifying massive 3.5m+ oversized entrance doors. Conventional pivot doors leak massive acoustic energy at the top and bottom pivot hinges. The industry trend focuses on patented internal mechanical interlocks and perimeter magnetic seals that actuate automatically when the pivot leaf sits flush, delivering Rw 40+ dB in monumental pivot formats.
Lead-sheet dampening cores and petroleum-dense bitumen layers are being replaced with recycled mineral-wool composites, bio-polyurethanes, and circular aerogel matrices. Procurement contracts now demand Environmental Product Declarations (EPDs), requiring door manufacturers to achieve acoustic attenuation while lowering embodied carbon.
Enterprise Manufacturing Scale

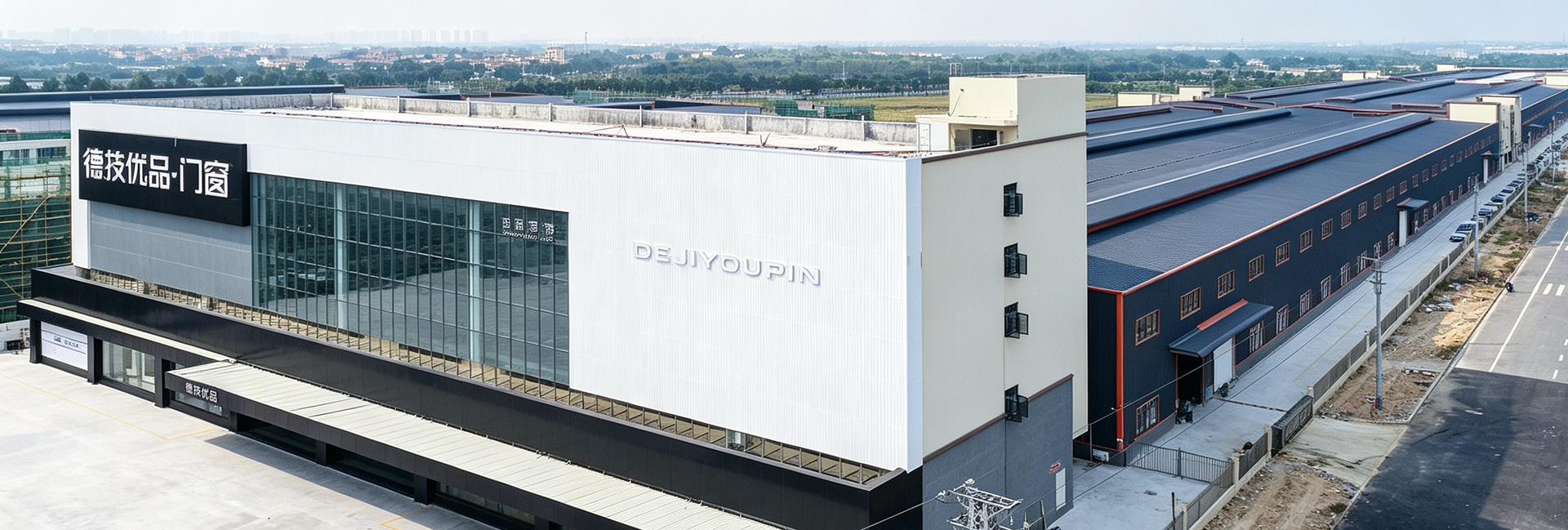

Founded over 25 years ago in Foshan—the world’s epicentre of advanced architectural aluminium processing—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands among the top 10 premium door and window manufacturing enterprises in China. With an expansive 180,000 m² modern digital production base and a skilled workforce exceeding 600 specialists, we design, test, and manufacture architectural door systems that solve acoustic, security, and climate challenges across Europe, North America, and Australasia.
Our acoustic and structural engineering prowess was demonstrated when a prestigious UK building contractor and long-term partner of German Schüco selected DERCHI to engineer and manufacture custom high-performance entrance systems for a multi-million-pound villa development. This strategic partnership validated that our manufacturing precision, acoustic sealing, and surface metallurgy match Europe's strictest engineering standards at factory-direct commercial efficiency.
Laboratory Verification
Do not take claimed decibels for granted. Every soundproof entry door manufactured by Guangdong Dejiyoupin Doors and Windows Co., Ltd. undergoes rigorous specimen testing. Our quality systems guarantee repeatable sound transmission loss and continuous compliance with European harmonized norms.
B2B Order Lifecycle
Managing complex architectural door specifications across borders demands zero room for error. DERCHI executes a synchronized six-stage workflow ensuring all sound attenuation criteria and CAD dimensions match your job site opening.
dB target & site climate analysis
Structural shop drawings & sections
Constrained layer damping assembly
100% factory gasket alignment test
Sea freight directly to port
Installation manuals & remote guide
Our acoustic engineers produce comprehensive 1:1 cross-sectional CAD drawings detailing threshold drop seals, jamb compression, and wall flashing.
All leaves undergo strict automated flatness and squareness laser checks to ensure EPDM compression seals touch every millimeter of the frame.
High-mass soundproof leaves are packed with reinforced corner protections and humidity-resistant film inside reinforced steel-frame crates.
We provide bilingual installation handbooks and direct video guidance with our acoustic technicians during European CET and GMT working hours.
Targeted Applications

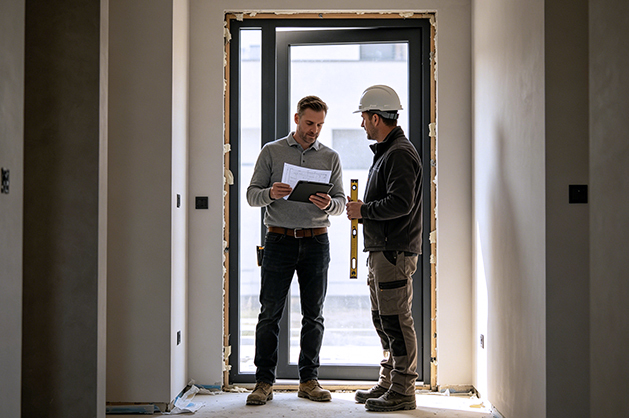

Different sectors demand specific acoustic mitigation strategies. Whether designing a high-density urban residential tower, an acoustic-critical recording studio, or a coastal luxury retreat, our systems provide exact solutions.
Virtual Factory Verification
International procurement demands total transparency. Tour our automated CNC extrusion workshops, heavy panel bonding lines, automated powder coating centers, and quality inspection bays without leaving your office.
Engineering Knowledge Base
Answers to the technical, structural, and acoustic queries most frequently raised by international architects, acoustic engineers, and B2B buyers.
Direct Engineering Consultation
Send us your door schedule, target decibel reduction (Rw/STC), and opening dimensions. Our bilingual acoustic engineering team will prepare customized shop drawings and a comprehensive quotation within 24 business hours.
Engineering Insights
A leading British property builder and long-standing installer of German Schüco architectural systems selected DERCHI for a multi-million-pound private villa development. The project required rigorous acoustic suppression (Rw > 42 dB) combined with custom architectural profiles, confirming DERCHI's capability to deliver German-tier standards direct from our Foshan facility.
Guangdong Dejiyoupin Doors and Windows Co., Ltd. presented our latest soundproof entry door systems and large-format acoustic pivot doors at WORLDBEX 2025. International developers praised our multi-layer dampening cores and dual mechanical perimeter drop seals for heavy transit hotel environments.
Our heavy entry door profiles passed Australia's highest AS 2047 N6 benchmark, resisting extreme cyclonic wind and water pressures. The structural rigidity required to survive cyclone tests directly enhances acoustic sealing by preventing perimeter frame twisting under high wind loads.
