Featured Aluminium & Glass Architectural Pivot Doors
Direct factory configurations manufactured to high precision. High-load concealed floor pivot hinges, thermal break acoustic cores, and bespoke multi-point security locking systems.

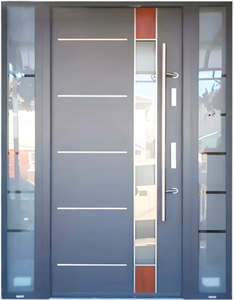

Hitech Main Entry Pivot Door Modern Front Exterior Pivot Door Aluminum Front Door For House
Technical Specs
Modern Pivot Aluminum Door Glass Front Villa Entry Thermal Break Energy Efficient
Technical Specs
Modern Aesthetic Long Term Durability Low Maintenance Thermal Break Aluminum Pivot Door
Technical Specs
Superhouse Luxury Design Stainless Steel Security Modern Black Aluminum Pivot Door
Technical Specs

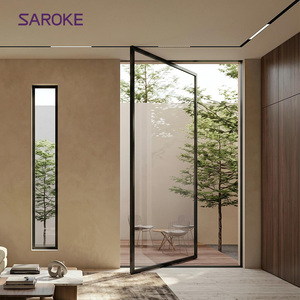

Black Foshan Large Horizontal Exterior Modern Luxury Smart Aluminium Glass Pivot Doors
Technical Specs
Modern Entry Doors Aluminum Entrance Door for Houses Villa Main Front Glass Pivot Door
Technical Specs
Modern Design Villa Entrance Solid Wood Pivot Door With Double Glass Sidelight Entry
Technical Specs180,000 m²
Smart Production Base
25+
Years Engineering Experience
600+
Specialized Technicians
100+
Global Patents & Certifications
Enterprise Value
Why Global Specifiers & Tier-1 Contractors Choose DERCHI
Ranked among the top architectural systems manufacturers in Foshan, China. We bridge bespoke European architectural ambition with industrial precision manufacturing.
German-Tier Quality Standards
Selected by prominent UK Schüco partners for high-density luxury villa developments, our factory processes comply strictly with EN 14351-1, AS2047 N6, and ISO 9001 certifications.
Oversized Bespoke Engineering
Fully customisable dimensions up to 4.5m leaf heights and 2.2m widths. Our load-bearing hardware handles single panel configurations weighing up to 800kg with effortless opening force.
Free BIM & CAD Integration
Our dedicated facade engineering department delivers parametric shop drawings, structural wind load calculations, and threshold drainage details within 24 hours of receiving door schedules.
Strategic Procurement Guide
Future Procurement Trends for Architectural Aluminium Glass Pivot Doors
Evaluating building code shifts, decarbonisation directives, and supply chain strategies driving global contract door procurement through 2026–2030.
Strict U-Value & Decarbonisation Codes
European regulations (such as UK Building Regs Approved Document L and Germany's GEG) demand overall door transmittance values (UD) below 1.2 W/(m²·K). Procuring developers are shifting toward multi-chamber thermal struts with low-carbon primary recycled billet profiles.
Total Envelope Pre-Fabrication
Contractors are prioritizing single-source manufacturing. Sourcing integrated door-curtain wall interfaces directly from factory floors eliminates on-site alignment variance, lowers installation labor by 35%, and guarantees certified air/water penetration ratings.
Concealed Smart Ecosystems
Surface-mounted hardware is obsolete in luxury schemes. Emerging procurement schedules mandate concealed motorized multipoint latches, invisible electric power transfers (EPT), and integrated biometric or smart home access credentials flush with architectural extrusions.
Architectural Pivot Door Engineering Specifications Comparison
| Performance Parameter | Standard Market Grade | DERCHI High-Performance OEM/ODM | Applicable Engineering Standard |
|---|---|---|---|
| Aluminium Alloy & Temper | Commercial 6063-T5 (1.4–1.8mm wall) | Primary Billet 6063-T6 Architectural (2.5–3.2mm structural wall) | EN 755-9 / ASTM B221 |
| Thermal Barrier Configuration | Non-thermal or 14.8mm PA66 strip | Multi-chamber 24mm to 34mm Technoform PA66 GF25 + Aerogel core | EN ISO 10077-2 (UD ≤ 1.0 W/m²K) |
| Hinged Pivot Mechanism | Floor spring box (requires floor excavation) | Fully concealed heavy-duty hydraulic self-closing pivot system | EN 1154 / 500,000 Cycle Tested |
| Glazing Assembly | Double glazed float glass unit | Triple glazed warm-edge Low-E laminated tempered safety glass | EN 12600 Class 1(B)1 / ASTM C1048 |
| Air / Water Tightness | Class 2 / Class 4A (single fin seal) | Class 4 / Class 9A (triple continuous EPDM + drop-down seal) | EN 12207 / EN 12208 |
| Burglar Resistance | Standard single latch lock | Multi-point automatic locking system with anti-drill core (RC2 / RC3) | EN 1627-1630 |
Industry Evolution
Technological Innovations in Aluminium Glass Pivot Systems
How mechanical engineering breakthroughs are resolving traditional pivot door challenges around air tightness, perimeter sagging, and thermal continuity.
Active Drop-Down Sealing
Automatic concealed pneumatic drop-down threshold bars actuate synchronously upon closing, sealing floor gaps without requiring trip hazards or high-profile exterior sill extrusions.
Anti-Bi-Metal Distortion Core
Patented split-profile thermal breaks counteract extreme temperature deltas between intense exterior summer sunlight and air-conditioned interiors, completely eliminating door leaf bowing.
Adjustable 3D Pivot Assemblies
Fully adjustable hinges allow lateral, vertical, and depth fine-tuning (±3mm) post-installation from the door edge without demounting the leaf, significantly reducing on-site snagging costs.
Structural Ceramic & Glass Hybrids
Integration of sintered stone, cast relief aluminum panels, and electrochromic switchable glass panels bonded via structural silicone to internal aerospace-grade hollow framework.
Procurement Knowledge Base
Frequently Asked Questions for B2B Importers & Contractors
Crucial compliance, production tolerance, and logistical points clarified by our senior engineering desk.
How do DERCHI aluminium pivot doors address weatherproofing and air leakage? +
Traditional pivot doors often suffer from air gaps at the top and bottom pivot axes. DERCHI overcomes this via an integrated dual-perimeter sealing system combining continuous vulcanized EPDM compression gaskets with magnetic dynamic drop-down threshold seals that fire automatically when the door reaches the locked resting position. Our systems achieve European Class 4 Air Permeability (EN 12207) and Class 9A Watertightness (EN 12208).
What is the structural lead time and drawing sign-off process for custom OEM/ODM orders? +
Upon receiving the architectural door schedule or floor plan, our CAD/BIM team issues complete shop drawings (including horizontal/vertical sections, anchor points, and electrical connection maps) within 24 to 48 hours. After formal client approval, extrusion machining and CNC assembly take approximately 25–35 working days. Critical fast-track slots can be reserved for urgent commercial projects.
Can your pivot doors achieve CE Certification compliance under EN 14351-1? +
Yes. Every door batch delivered to the European Union is fabricated in strict accordance with the Construction Products Regulation (CPR). We supply full factory production control (FPC) documentation, Declaration of Performance (DoP), and third-party verified test reports verifying thermal transmittance, wind resistance, and structural safety.
What surface treatments are available for extreme marine or high-UV environments? +
We offer Qualicoat Seaside-certified architectural powder coatings (AkzoNobel / Tiger Drylac) offering a minimum 20-year colorfastness guarantee against UV fade, alongside 25-micron hard-anodized finishes and fluorocarbon (PVDF) 3-coat spray finishes designed to resist high salinity coastal environments.
How are heavy oversized pivot door assemblies crated for secure overseas shipping? +
All doors undergo complete test assembly and inspection in our Foshan facility prior to crating. Leafs and frames are wrapped in waterproof PE protection, buffered with shock-absorbing honeycomb foam, and encased in fully sealed, ISPM-15 compliant fumigated solid plywood crates. We provide turnkey door-to-port and door-to-jobsite logistics tracking across Europe, North America, and Australasia.
