Featured Exterior Aluminum Door Systems
Engineered to exceed strict international building codes including European EN 14351-1, Australian AS 2047, and North American NFRC benchmarks. Custom shop drawings, thermal calculations, and factory-direct FOB/CIF quotes available for all door schedules.
New Mobile Home Double Glazed Soundproof Insulated Glass French Doors and Windows

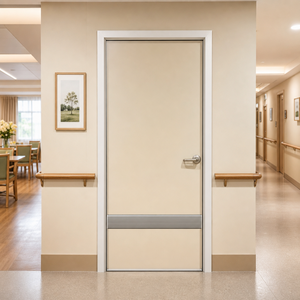

Hot Selling Modern Durable High-Quality Brown Hospital Aluminum Doors Ward Doors Medical Doors
Panoramic Frameless Folding Glass Window Aluminum BiFold Window System For Balcony Patio Villa
OUNA Minimalist Design Heavy Duty SDL Sliding Door House Exterior Patio Aluminum Door
Commercial Customized Aluminum Windows Sound Proof Insect Control Crank Out Casement Windows
Soft Close SGCC Certified Villa Hotel Aluminum Alloy Bronze 5mm+5mm Laminated Safety Glass Pivot Door
Superhouse AS2047 Australian Standard Waterproof Aluminium Double Tempered Glass Single Hung Window
Luvindow Best Seller Aluminum Automatic Exterior Double Glazed Front Door Hot Glass Entry Doors
The Foshan Supply Chain Advantage: Why Global Developers Source in Guangdong
In high-end architectural envelope procurement, geographic clustering dictates material consistency, lead times, and metallurgical innovation. Foshan accounts for over 35% of high-grade architectural aluminium extrusions produced globally. Within a 30-kilometre radius of our Shishan facility sits a dense network of primary aluminium smelters using 6063-T6 virgin billets, precision tool-and-die specialists, certified PVDF fluorocarbon chemical finish coaters, and tier-one hardware fabrication partners (including Siegenia, Hoppe, GU, and Roto licensed distribution centers).
This localized vertical integration allows DERCHI to bypass middle-tier sub-assemblers, maintaining complete mechanical and thermal batch traceability from raw ingot composition through to final crating. For global procurement officers, this geographic concentration eliminates up to 22 business days of production buffer lag compared to inland manufacturing hubs, while guaranteeing that dimensional tolerances consistently fall within ±0.5 mm across complex multi-panel outside door configurations.
Product Development Trends in Aluminum Outside Doors
Modern outside door manufacturing has shifted from simple perimeter frames to highly integrated thermal and acoustic envelope systems. The following technical paradigms define the future of high-performance architectural doors.
Multi-Chamber Polyamide PA66 GF25 Thermal Barriers
Traditional single-cavity extrusions fail to satisfy stringent global energy codes such as German GEG, UK Building Regs Part L, and California Title 24. Next-generation exterior outside doors utilize wide multi-cavity thermal break strips made of 25% glass-fiber reinforced polyamide (PA66 GF25), combined with low-density aerogel or polyurethane thermal core fills. This suppresses linear thermal transmittance (Ψ), driving overall door U-values (Ud) below 0.85 W/(m²·K) for certified passive house compliance.
Heavy-Duty Monumental Pivot Engineering
Architectural demand for oversized exterior entrances has rendered standard butt hinges obsolete for grand portals. Modern Chinese factories have perfected concealed heavy-duty hydraulic floor pivots engineered from 304/316 grade stainless steel. These specialized bearing systems carry individual leaf weights exceeding 650 kg and door heights up to 4.5 metres with zero hinge sag, featuring integrated 3-stage hydraulic deceleration, hold-open settings, and built-in anti-drop security pins.
Surface Metallurgy: PVDF & Anodized Nanocoatings
For coastal and harsh urban microclimates, finish deterioration remains the primary cause of warranty claims. Premium outside door manufacturing now relies on 3-coat/2-bake polyvinylidene fluoride (PVDF) fluorocarbon liquid finishes compliant with AAMA 2605 specifications, or 25-micron architectural electrolytic anodizing. These surface treatments resist UV degradation, acid rain, and salt-spray corrosion for over 30 years without chalking or micro-cracking.
| Engineering Attribute | Standard Grade Commercial | DERCHI Architectural Grade (Foshan Export) | Testing Protocol / Compliance Target |
|---|---|---|---|
| Alloy Base & Temper | Recycled 6063-T5 | Primary 6063-T6 / 6061-T6 High-Tensile Billet | ASTM B221 / EN 755-2 Mechanical Limits |
| Wall Profile Thickness | 1.4 mm – 1.6 mm | 2.0 mm – 3.5 mm Structural Load-Bearing | GB/T 8478 & AS/NZS 1866 Requirements |
| Thermal Transmittance (Ud) | 2.2 – 3.0 W/(m²·K) | 0.80 – 1.25 W/(m²·K) (Thermally Broken) | ISO 10077-1/2 & EN 14351-1 Passive Standards |
| Wind Load Resistance | Serviceability: 1800 Pa | Ultimate Limit State: Up to 5000 Pa (N6 Level) | AS 2047 / ASTM E330 / EN 12210 Class C5 |
| Burglar & Impact Rating | Single latch standard | RC2 / RC3 Multipoint Hook Locking + SGCC Glass | EN 1627-1630 / PAS 24 / ASTM F588 |
| Hardware Cycle Life | 50,000 – 100,000 cycles | 500,000+ Verified Operational Cycles | EN 1191 / ANSI A156 Grade 1 Heavy Duty |
Future B2B Procurement Trends for Aluminum Outside Doors
International trade compliance, carbon tariffs, and digitalized fabrication are redefining how developers, structural engineers, and importers procure outside door assemblies from Chinese OEMs.
CBAM & Low-Carbon Aluminium Certification
With the phased implementation of the European Union's Carbon Border Adjustment Mechanism (CBAM) and corporate ESG reporting, forward-thinking buyers now demand verified Environmental Product Declarations (EPDs). Premier Chinese manufacturers are increasingly powering extrusion facilities with certified hydropower or solar micro-grids and using verified low-carbon billets (< 4.0 t CO₂/t Al). Procuring verified green aluminium avoids substantial retroactive customs levies at destination ports.
Direct-from-Factory BIM/CAD Integration
The era of paper submittals is over. Global architectural practices now require parametric Revit and IFC door families built to Level of Development (LOD) 300 and 400. Direct engineering collaboration enables Chinese factory engineers to perform finite element analysis (FEA) on large glass panels and profile wind-load deflections during the schematic design phase, reducing on-site structural discrepancies and avoiding change-order disputes during construction.
Smart-Access Pre-Installation & Mechatronics
Modern outside door procurement increasingly bundles structural framing with pre-wired home automation. High-tier suppliers now integrate motorized multi-point locks, invisible conductive door hinges, concealed biometric fingerprint scanners, and 3D facial-recognition modules during factory fabrication. Completing all low-voltage wiring harness channels and testing mechatronic circuits under factory clean-room conditions prevents delicate electro-mechanical failures on site.
Factory Quality Control: The 4-Stage Sourcing Inspection Protocol
Engineering Approval
Free parametric CAD submittals, anchor-point calculations, and thermal modelling matched directly to the general contractor's door schedule.
Structural & Air Infiltration
Rigorous cyclic testing of hardware kinematics, air permeability (EN 12207 Class 4), and water tightness under high cyclic barometric pressures.
Export Ocean Crating
Multi-layer protective film, custom ISPM-15 heat-treated fumigated plywood crates with desiccant packs, engineered for heavy sea voyages.
B2B Job-Site Support
Comprehensive 3D installation manuals and dedicated bilingual sales engineers aligned with European and American business hours.
Frequently Asked Questions (FAQ)
Direct answers to the most common technical, regulatory, and logistics questions asked by international architects, project managers, and building product importers.
How do DERCHI aluminum outside doors comply with European CE Marking (EN 14351-1)?
What are the key technical differences between 6063-T5 and 6063-T6 aluminum alloys for exterior doors?
What anti-corrosion finish is recommended for oceanfront or high-salinity coastal environments?
How does the factory prevent shipping damage and thermal shock during international sea transport?
Can DERCHI supply custom CAD shop drawings, hardware schedules, and BIM files for project tenders?
What are the typical manufacturing lead times and minimum order quantities (MOQ)?
How does DERCHI's quality compare to German systems like Schüco, Reynaers, or Cortizo?
Ready to Specify or Source Architectural Outside Doors?
Send us your door schedules, architectural floor plans, or custom size requirements. Our technical sales engineering team will review your specifications, verify achievable performance targets (U-value, wind-load, acoustic STC), and deliver shop drawings with a direct FOB/CIF quote within 24 hours.
