Luvindow Cost-Effective Minimalist Frameless Look Aluminium Windows for Modern Residence
Ultra-slim visual profiles integrating concealed trickle ventilation ports and high-impact structural glass units.
180,000 m²
Intelligent Manufacturing Base
25+ Years
Engineering & Façade Expertise
AS2047 / CE
Certified Wind & Air Impermeability
30+ Patents
Acoustic & Thermal Barrier R&D
Engineered Architectural Solutions
Featured Industrial & Residential Fenestration Systems
Explore our top-tier catalog of precision-engineered aluminium profiles, structural thermal break ventilation apertures, and luxury entrance configurations engineered for harsh microclimates.

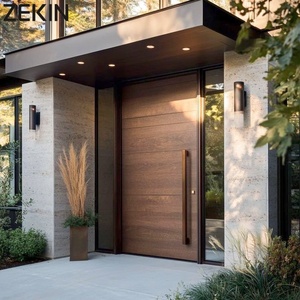

ZEKIN Architectural Thermal Insulation & Fire Prevention Luxury Front Pivot Door
German pivot gear mechanics supporting oversized structural leafs with automated air-exchange draft barriers.
Richocean High-Security Ballistic Resistant Aluminium Storm Entry Door System
Armored multi-point perimeter compression seals balancing forced-entry prevention with ambient climate exchange.

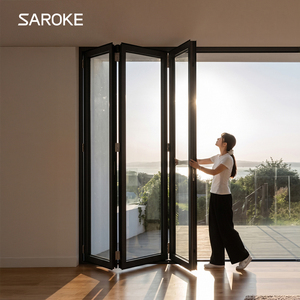

Villa Waterproof Custom 6-Panel Weather-Resistant Aluminium Glass Folding Fenestration
Continuous multi-track drainage design with micro-ventilation positions preventing internal atmospheric condensation.
DERCHI AS2047 Certified Double Glazed Thermal Break Exterior Patio Bi-Fold Door
Conforms to NFRC and Australian N6 cyclone ratings; high-durability EPDM gaskets ensure controlled room breathing.
PDP Contemporary Flush-Fit Aluminum Anti-Theft Double Leaf Structural System
Heavy-duty 6063-T6 alloy extrusion framing incorporating bottom drop-down draft seals and louvered transom inserts.
Solid Timber Core with Aluminium Structural Sub-Frame Exterior Pivoting Door
Combines natural organic timber warmth with warp-free aluminium perimeter thermal chambers for natural cross-drafts.
Industrial Precision Aluminium Casement System with Micro-Ventilation Sash Hardware
Multi-stage tilt and turn friction stay configuration allowing secure night-ventilation without compromising burglar resistance.
Market Intelligence & Engineering Insight
Future Procurement Trends in Aluminium Architectural Ventilation
Modern building envelopes demand an intricate balance between airtight building codes (such as German GEG, UK Building Regs Approved Document F & L, and ASHRAE 90.1) and essential continuous passive fresh air flow.
Acoustic Attenuation with Trickle Aeration
Urban dense developments demand sound reduction (Rw + Ctr up to 42 dB) while maintaining free aerodynamic area. Specifiers are shifting towards integrated labyrinth airflow baffles equipped with hydrophobic acoustic foam lining that suppress exterior vehicular noise while providing constant passive air displacement.
Polyamide (PA66 GF25) Thermal Rupture Innovation
Global decarbonization mandates require window overall heat transfer coefficients (U-values) under 1.1 W/(m²·K). Procurement schedules favor 34mm to 45mm multi-chamber low-lambda glass-fiber reinforced polyamide thermal struts to eliminate thermal bridging, preventing cold-corner mold development during ventilation.
Building Management System (BMS) Automation
Concealed chain actuators operating alongside internal CO2 and indoor volatile organic compound (VOC) sensor arrays are becoming standard in high-end specifications. Intelligent window actuators allow programmed nighttime thermal purging without requiring physical occupant manual activation.
Standardization Matrix
Comparative Fenestration & Aeration Engineering Thresholds
Procuring engineers and architectural contractors require verifiable test evidence under EN and ASTM protocols before initiating project submittals.
| Performance Indicator | European Standard (EN) | North American / Australian (ASTM / AS) | DERCHI Factory Achieved Specification |
|---|---|---|---|
| Air Permeability / Infiltration | EN 12207: Class 4 (600 Pa) | ASTM E283: ≤ 0.1 CFM/sq.ft | Class 4 Confirmed (Triple vulcanized EPDM gasketing) |
| Water Tightness (Static & Dynamic) | EN 12208: Class E1200 | ASTM E331: 15 psf (720 Pa) | Exceeds 1050 Pa with integrated sub-sill pressure chambers |
| Wind Load Resistance | EN 12210: Class C5 | AS 2047: Cyclonic N6 (> 4.0 kPa) | Class C5 / Serviceability up to 4500 Pa Structural Load |
| Thermal Transmittance (Uw) | EN ISO 10077-1 / EN ISO 10077-2 | NFRC 100 / 200 (U-factor ≤ 0.22) | Down to 0.85 W/(m²·K) with warm-edge triple glazing argon fills |
| Burglar Intrusion Resistance | EN 1627: RC2 / RC3 Rating | ASTM F588 Grade 40 | Full RC3 compliance with perimeter mushroom-head multi-locking |
Manufacturing Capability
Industrial Muscle: Foshan's Premier Fenestration Base
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates over 180,000 m² of modern structural assembly facilities in Shishan Town, Foshan. As a recognized top-tier brand in architectural aluminium and certified supplier to large European developments, we eliminate intermediary price inflation.
- Verified Supply History: Chosen by a long-term UK Schüco partner for luxury multi-villa master specifications across Britain and Western Europe.
- End-to-End Vertical Integration: In-house extrusions, CNC precision mitering, robotized corner crimping, and dynamic pneumatic load testing.
- Shop Drawing & BIM Delivery: Free customized CAD shop drawings generated strictly according to your architectural window schedule within 48 hours.
- Export Packaging Integrity: Fumigated solid-plywood crating with desiccant protection ensures zero surface scuffing during long-haul sea freight to Rotterdam, Hamburg, or Felixstowe.
Architectural Knowledge Base
Frequently Asked Technical & Procurement Questions
Critical clarifications for commercial contractors, general builders, and international façade distribution partners.
How do trickle vents affect overall window U-values and airtightness ratings?
When closed, factory-integrated thermally decoupled trickle ventilators maintain the full airtightness rating (Class 4 EN 12207). When open, they provide controlled background air exchange (typically 2500 mm² to 5000 mm² equivalent area) without introducing thermal short-circuits across the frame.
What surface treatments protect aluminium against coastal salt-spray corrosion?
We apply Qualicoat Class 2 architectural powder coatings (60–80 microns thickness) or 25-micron hard-anodized architectural treatments, validated to withstand over 3,000 hours of accelerated neutral salt spray testing (AAMA 2604/2605 compliant).
Can you manufacture oversized pivot and casement leaves with integrated vents?
Yes. Leveraging custom-engineered 6063-T6 virgin aluminium extrusion walls (up to 3.0mm primary wall thickness) and heavy-duty German concealed hardware, we engineer pivot systems up to 2.2 meters wide by 4.0 meters high with automated bottom drop seals.
What is your lead time for commercial shop drawing approvals and container dispatch?
CAD shop drawings are provided within 48 to 72 hours of project schedule receipt. Upon physical sign-off and color match approval, factory production windows run 25 to 35 business days, followed by scheduled multimodal sea container dispatch.
Request an Architectural Tender & Engineering Estimate
Send your project window schedules, CAD elevation sections, and thermal/acoustic targets directly to our bilingual engineering desk. We provide factory-direct pricing backed by complete international test certifications.
