Acoustic Bi-Fold
Soundproof Aluminum Glass Bi-fold Balcony Terrace Door System
- Acoustic Damping: Rw ≤ 42 dB
- Profile Alloy: 6063-T6 (2.0mm)
- System Width: 75mm Depth
Flagship Fenestration Portfolio
Featured Aluminum Double Doors & Architectural Systems
Precision-engineered for luxury villa entrances, prestigious commercial facades, and energy-conscious estates. Sourced directly from our automated 180,000 m² manufacturing plant.
Villa Main Entry
Security Grade Thermal Break Exterior Swing Entrance Doors
- Security Rating: EN 1627 RC3
- Thermal Bridge: PA66 GF25 34mm
- Locking System: 5-Point Automatic

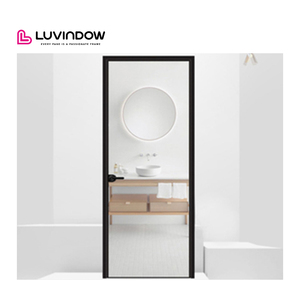

Ultra-Narrow Vista
Customized Double Glazed Ultra-Narrow Frame Double Entry Door
- Sightline Width: 18mm Minimalist
- Glass Config: Low-E Tempered IGU
- Surface: AkzoNobel PVDF
Terrace Panoramic
Soundproof Curtain Terrace Glazing & Folding Balcony Double Doors
- Wind Load: Class 5 (EN 12210)
- Water Seal: Class 9A (EN 12208)
- Operation: Heavy-Duty Quad-Roller
Armored Security
High-Security Metal Main Hinge Entry Armored Front Door System
- Core Leaf: Multi-Layer Steel-Alu
- Hinge Rating: 500 kg 3D Heavy Hinge
- Bio-Access: Smart RFID/Biometric
Living Room Slider
Thermal Insulated Precision Architectural Sliding Doors & Windows
- U-Factor: 1.1 W/(m²·K)
- Air Permeability: Class 4 (EN 12207)
- Glazing: Triple Gas Argon Fill
Integrated Screen
Magnetic Blind Stainless Steel Screen Integrated Patio Double Door
- Mesh Spec: 304 Marine Stainless
- Roller System: Magnetic Blind Built-in
- Coating: Qualicoat Class 2
NFRC Accordion
NFRC Certified Large Modern Soundproof Accordion Patio Doors
- Standards: NFRC / CE / AS2047
- Leaf Width: Up to 1200mm per sash
- Track Profile: Recessed ADA Compliant
Engineering White Paper
Structural Architecture of Modern Aluminum Double Front Doors
Architectural double front doors operate under extreme dimensional dynamics. Unlike single-leaf configurations, paired entrance systems experience cumulative wind loading, differential thermal expansion (thermal bow), and perimeter torque at the central astragal junction.
6063-T6 Primary Billet Metallurgy
We reject low-purity scrap remelts. Our door jambs, stiles, and intermediate mullions are extruded exclusively from primary architectural-grade aluminum alloy 6063-T6 with a nominal wall thickness of 2.2mm to 3.0mm. This delivers a tensile yield strength ≥ 160 MPa, ensuring structural dimensional stability across door spans up to 3000mm in height without lateral torsion or deflection under dynamic atmospheric wind shear.
Polyamide Thermal Barrier (PA66 GF25)
Eliminating condensation and internal thermal conductance requires continuous multi-cavity thermal separation. Our systems integrate German-engineered Technoform 34mm multi-chamber polyamide struts reinforced with 25% glass fiber. This matches aluminum's coefficient of linear expansion while delivering overall door U-values (Ud) as low as 0.85 W/(m²·K), surpassing Passive House and German GEG requirements.
Isobaric Vulcanized EPDM Sealing
Double doors present an inherent perimeter vulnerability at the central astragal meeting point. We utilize continuous vulcanized ternary ethylene propylene diene monomer (EPDM) synthetic rubber gaskets. Engineered with an isobaric rainscreen decompression chamber, our multi-barrier sealing neutralizes capillary suction and achieves EN 12208 Class 9A watertightness under torrential driving rain.
Procurement Specification Framework
Comparative Matrix: Aluminum vs. Alternative Double Door Materials
B2B specifiers, real estate developers, and facade consultants face performance trade-offs when selecting entrance materials. Below is an engineering benchmark based on international laboratory testing.
| Performance Vector | DERCHI Architectural Aluminum | Standard Commercial Aluminum | Solid Hardwood (Oak/Teak) | Carbon Steel Armored |
|---|---|---|---|---|
| Thermal Value (Ud) | 0.85 – 1.20 W/(m²·K) (PA66 Multi-Break) | 1.80 – 2.60 W/(m²·K) (Generic Strip) | 1.40 – 1.90 W/(m²·K) | 1.60 – 2.40 W/(m²·K) |
| Dimensional Warpage Tolerance | < 0.5 mm over 3.0m Span | 1.5 – 3.0 mm (Thermal Bow prone) | 4.0 – 12.0 mm (Moisture Swell) | < 1.0 mm |
| Burglar Resistance (EN 1627) | Class RC2 / RC3 / RC4 Certified | RC1 or Non-Rated | RC1 – RC2 (Depending on core) | RC3 – RC4 Certified |
| Coastal Corrosion Protection | Qualicoat Class 2 / PVDF (C4/C5 Rated) | Standard Anodize (C2/C3) | Varnish Degradation (High Care) | Oxidation/Rust Vulnerability |
| Max Leaf Dimension Capacity | 1500 mm × 3500 mm per leaf | 1000 mm × 2400 mm | 1100 mm × 2600 mm | 1400 mm × 3000 mm |
| Design Service Life | 50+ Years (Recyclable Alloy) | 15 – 20 Years | 20 – 30 Years (High Maintenance) | 25 – 35 Years |
Strategic Market Intelligence
Future Procurement Trends in Double Entrance Architecture (2025–2035)
The high-end residential and commercial facade sectors are experiencing a transformation driven by stricter building envelopes, mechatronic security demands, and carbon footprint reduction targets.
Trend 1: Monumental Sizing & Minimalist Sightlines
Architects increasingly specify dramatic floor-to-ceiling double doors reaching 3.5m to 4.5m in clear architectural opening height. Achieving this scale requires specialized inner steel reinforcement chambers, anti-deflection structural thermal barrier ties, and hidden high-capacity pivot gearings capable of bearing up to 600 kg per door leaf without perimeter sagging or latch displacement.
Trend 2: Seamless Mechatronics & Smart Building IoT
Traditional mechanical cylinder keys are being replaced by automated entry systems. Leading commercial and luxury developments now require fully concealed motorized multi-point German locks (such as Winkhaus autoLock or GU-Secury) integrated with 3D facial recognition, encrypted smartphone Bluetooth tokens, and BACnet/KNX home automation interfaces for access control and status logging.
Trend 3: Circular Metallurgy & Low-Carbon Billets
With the implementation of the EU Carbon Border Adjustment Mechanism (CBAM) and strict LEED v4.1 / BREEAM requirements, international developers now demand verified Environmental Product Declarations (EPD). Procurement is shifting decisively toward certified low-embodied-carbon aluminum extruded using renewable hydropower, containing a minimum of 50% post-consumer recycled metal.
Direct Manufacturer Strength
Guangdong Dejiyoupin Doors & Windows (DERCHI)
For over 25 years, DERCHI has operated at the nexus of German fenestration precision and industrial manufacturing scale in Foshan, China. We serve as a direct tier-one manufacturing partner for architects, commercial general contractors, and distributor networks across Europe, North America, and Australasia.
Selected by UK Schüco Partner: Trusted as exclusive custom double-entry fabricator for multi-villa residential schemes across the United Kingdom.
In-House CAD/BIM Engineering: Free shop drawings, precise profile section detailing, and full door schedule integration within 48 hours.
Certified Compliance Matrix: CE (EN 14351-1), ISO 9001:2015, AS 2047 N6 Cyclonic certification, and UL-certified fire-rated door options.
180,000
Square Meter Base
600+
Industrial Specialists
30+
Patented Technologies
25+
Years Engineering Track
Technical FAQ
Frequently Asked Architectural & Procurement Questions
Direct answers addressing technical specifications, building code compliance, hardware options, and global shipping logistics for aluminum double front entrance doors.
How do DERCHI double front doors mitigate thermal bowing in extreme climates?
Thermal bowing occurs when significant temperature differentials exist between the exterior door face (e.g., exposed to direct solar irradiance reaching +60°C) and climate-controlled interiors (+20°C). DERCHI solves this by incorporating patented split polyamide insulation bars with mechanical slip-friction joints. This engineered interface absorbs differential linear expansion while maintaining absolute coplanarity, preventing door sash jamming and preserving perimeter airtightness.
What burglar resistance ratings are achievable under European EN 1627?
Our aluminum double front doors can be configured to meet Resistance Class 2 (RC2) and Resistance Class 3 (RC3) according to EN 1627-1630. This configuration includes multi-point hook locks forged from hardened case steel, anti-drill drill-plates protecting the cylinder profile, internal steel-reinforced sash chambers, and laminated anti-bandit safety glass adhering to EN 356 Class P5A.
Can DERCHI supply complete CAD shop drawings to match architectural door schedules?
Yes. Our dedicated in-house engineering design office generates full CAD elevation layouts, 1:1 cross-sectional threshold connection details, rough opening preparation plans, and anchor fastening matrices for every order. We provide these drawings free of charge for architect and structural engineer approval prior to releasing production tooling.
What surface finishing warranties are offered for coastal and high-salinity zones?
For marine, coastal, and harsh industrial environments, we apply certified Qualicoat Seaside (Class 2) architectural powder coatings using AkzoNobel or Tiger Drylac resins, or high-grade 70% Kynar 500 fluorocarbon PVDF finishes. These multi-coat finishes undergo rigorous 3,000-hour acetic acid salt spray (AASS) and accelerated QUV exposure testing, backed by up to 25-year anti-fading, anti-chalking, and corrosion resistance warranties.
How are oversized double doors packaged for safe intercontinental sea freight?
Every door unit is wrapped in multi-layer protective PE film, shielded with 20mm high-density corner guards, encased in moisture-barrier plastic, and packed into fumigated solid plywood crates reinforced with interior steel strapping. Sashes and master frames can be shipped fully assembled and calibrated or knocked-down (KD) for straightforward site handling and assembly.
What concealed threshold systems are available to meet barrier-free standards?
We supply flush-to-floor, zero-step transition thresholds compliant with European DIN 18040 and ADA barrier-free accessibility guidelines. These assemblies feature internal concealed drainage flumes, integrated sub-sill drain trays, and automatic drop-down mechanical bottom gaskets that seal against draughts and driving rain when closed while providing smooth wheelchair access when open.
What smart locking and electronic access control systems can be integrated?
Our profiles can be pre-machined to house concealed electronic power transfers (such as Dormakaba or GU concealed cables), motorized multi-point latches, biometric fingerprint sensors embedded in architectural pull bars, face-recognition modules, and digital keypads. These components interface seamlessly with modern building management systems (BMS) and smart home ecosystems.
What is the standard production lead time for customized double door orders?
Standard production lead time ranges from 25 to 35 calendar days following formal CAD shop drawing sign-off and finish sample approval. For large commercial projects or customized extrusion dies, lead times are tailored to contractor construction schedules, with batch shipping coordinated to key ports worldwide (including Rotterdam, Hamburg, Long Beach, and Sydney).
