Alucom 4x8 Feet 3mm Acp Toyo Fireproof Antibacterial Aluminum Core Composite Clading Sheets Panel Outdoor Doors 1 Year Warranty
Product Description
Product Parameters

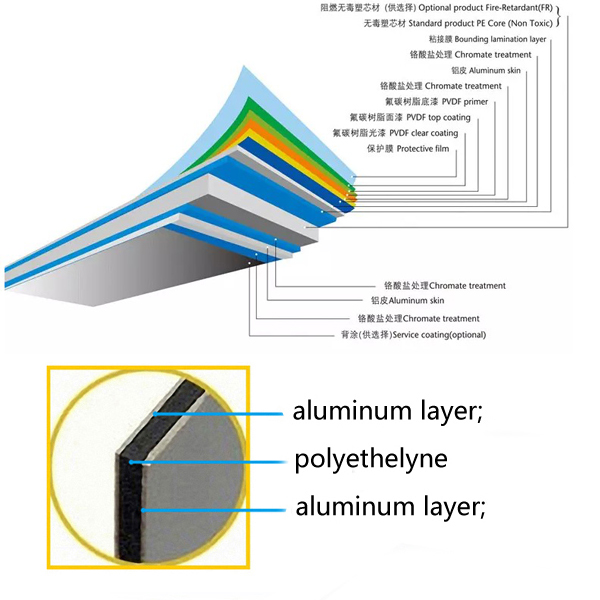

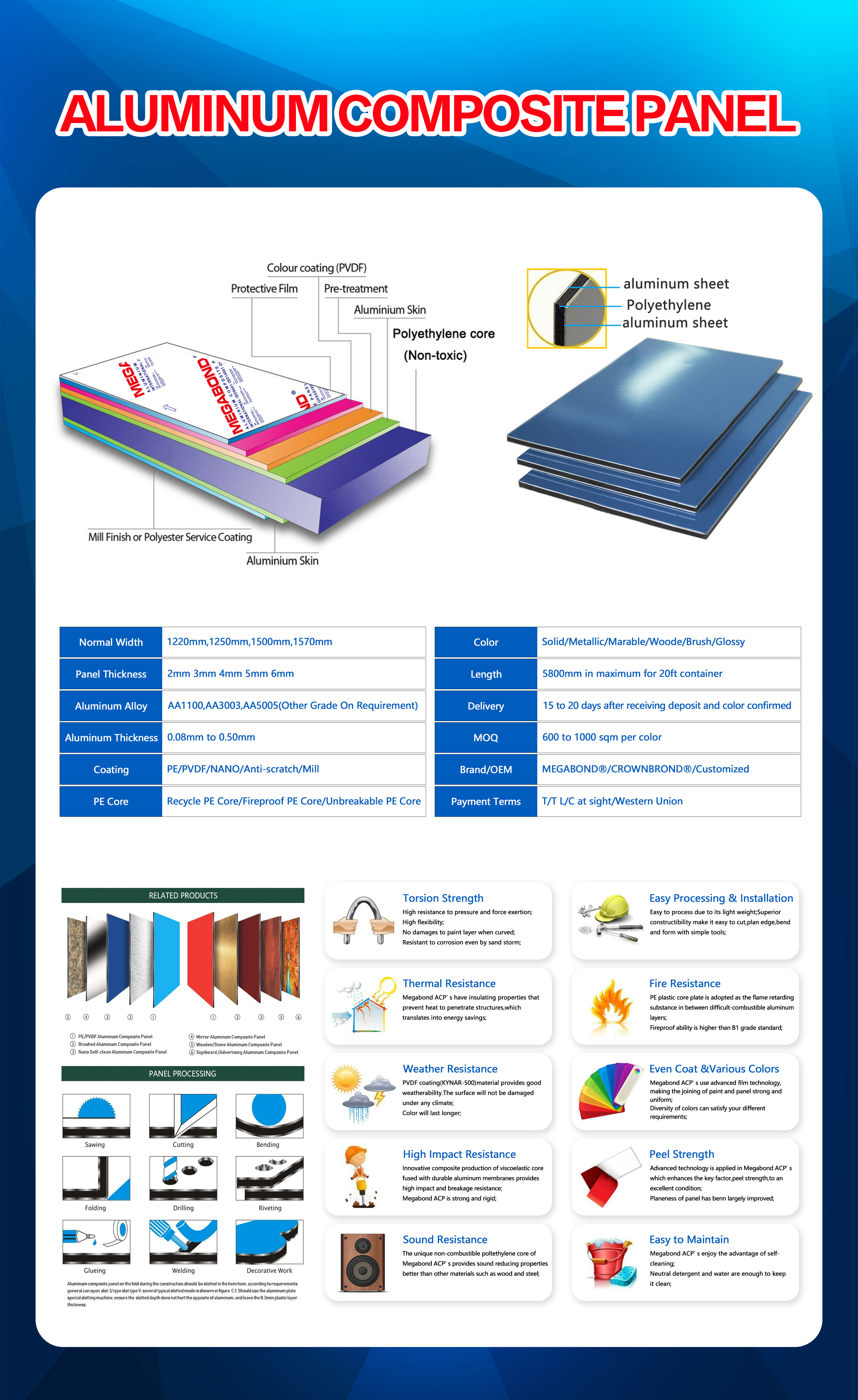

PVDF COATING Aluminum composite panel
The aluminum-plastic composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle layer is non-toxic low-density PE core board. The front side of the board is also coated with a protective film. For outdoor, the front of the aluminum-plastic plate is coated with PVDF, while for indoor, the front can be coated with non-fluorocarbon resin.
Products Description
| Front side | Aluminum Alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting |
| Core | Non-toxic polyethylene or Plastic fireproof materials(B1/A2) |
| Back side | Aluminium alloy sheet coated with polyester resin painting |
| Panel Thickness | 2mm, 3mm, 4mm, 5mm, 6mm are available |
| Alu thickness | 0.5mm, 0.4mm, 0.3mm, 0.21mm, 0.18mm, 0.15mm, 0.12mm, 0.1mm, 0.06mm |
| Width | 1220mm(regular), 1250mm, 1300mm, 1500mm, 1550mm, 1570mm, 1575mm(Maximum) |
| Length | 2440mm(regular), and or by customer’s offers, 5800mm(Maximum) |
| Standard size | 1220(Width)x2440(Length)x3mm(Thickness); 1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | MIRROR, MARBLE IMITATION, WOOD IMITATION, BRUSH, PVC FILM, PP FILM, PEARL SERIES, GLOSSY SURFACE, MATT SURFACE |

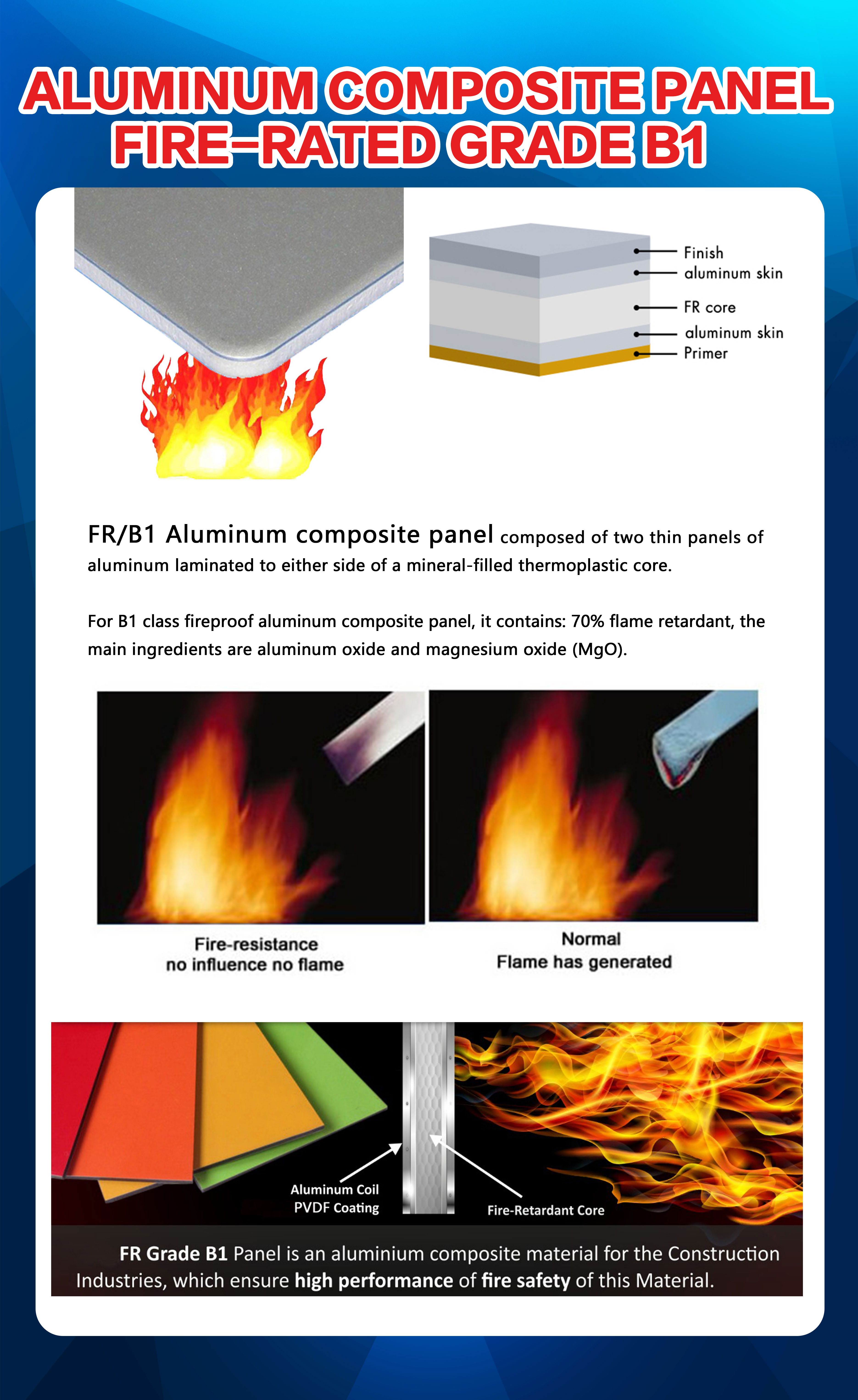

| Core material | (Normal non toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE,) B1 non-combustible mineral filled core, A2 non-combustible mineral filled core |
| Coating | PE COATING, PVDF COATING, FEVE COATING, ANODIZED COATING |
| Standard | According to China National Standard GB/t 17748-2016 |
| Technical data of PVDF aluminum composite panel | ||
|---|---|---|
| Thickness of coating | PVDF paint ≥25 um | 26um to 28um |
| Coating Flexibility (T-bend) | PVDF paint≤2T | 2T |
| Coating Adhesion | ≤1 grade for 10*10mm2 gridding test | 1 grade |
| Pencil Hardness | ≥HB | HB |
| Resist Solvent | No change for 200 times (MEK) | No change |
| Chemical Resistance | 5%HCL or 5%NAOH-No change for 24hours | No change |
| Boiling Water Resistance | coating no tear off for 2 hours boiling | no tear off |
| Color difference | ΔE≤2.0(follow color sample) | 0.5 |
| Panel Peeling Strength | 7 N/mm for 4mm panel with 0.5mm aluminium. skin | 7N/mm |
| Impact Test for paint | 50Kg.cm impact--paint no split for panel | no split |
| Abrasion Resistance(L/Mil) | ASTM D968 | 44 |
| Chemical Resistance | ASTM D1308 | Appearance: No change |
| Film Adhesion | ASTM D3359(Note 1) | 5B |
| Detergent Resistance(3%) | ASTM D2248 | Appearance: No change |
| Stripping Strength(kgf/inch) | ASTM D903 | 18.5 |
| Humidity Resistance (3000hrs,100%RH,100°F) | ASTM D2247 | Appearance: No change |
| Salt Spray Resistance (3000hrs,5% salt) | ASTM B117 | Appearance: No change |

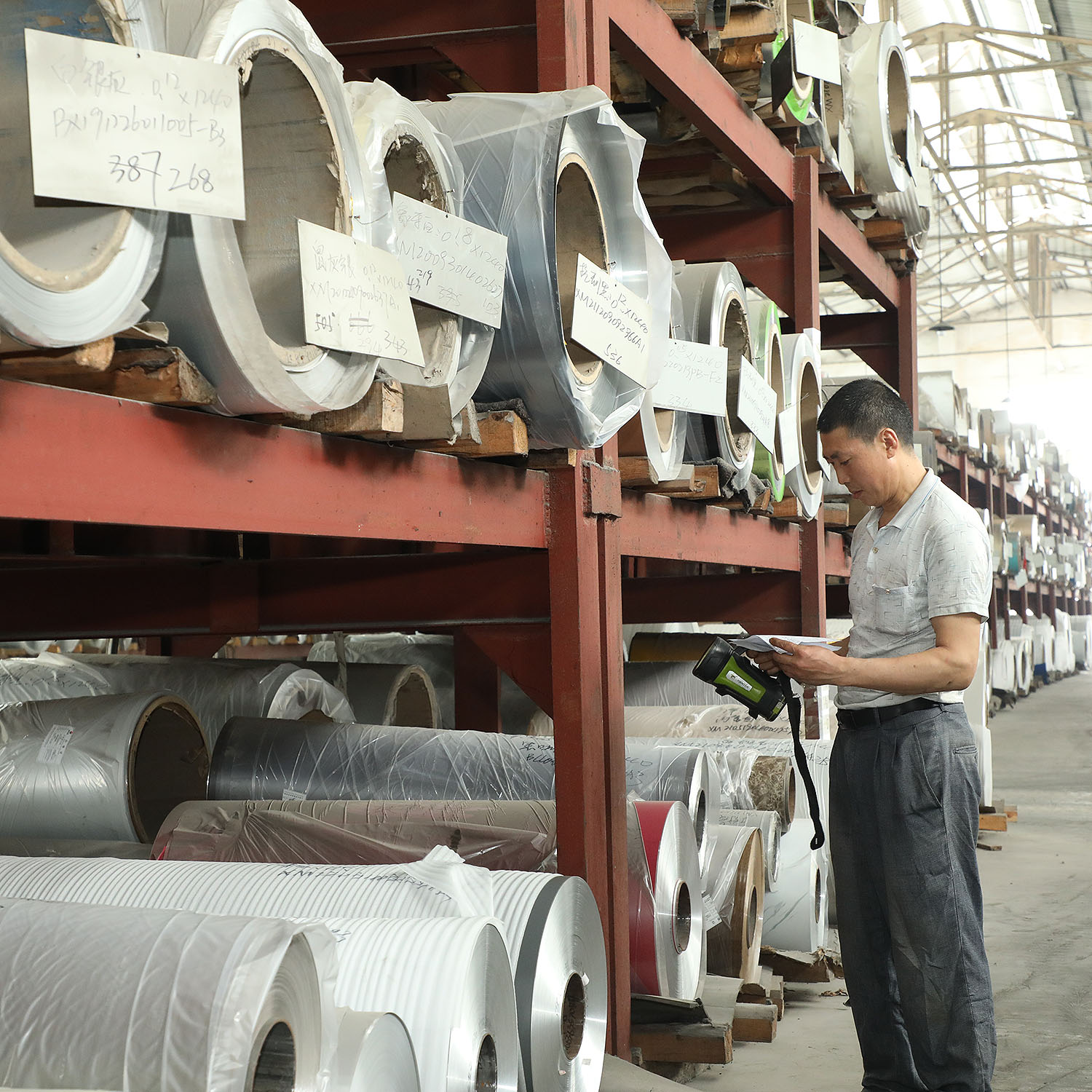

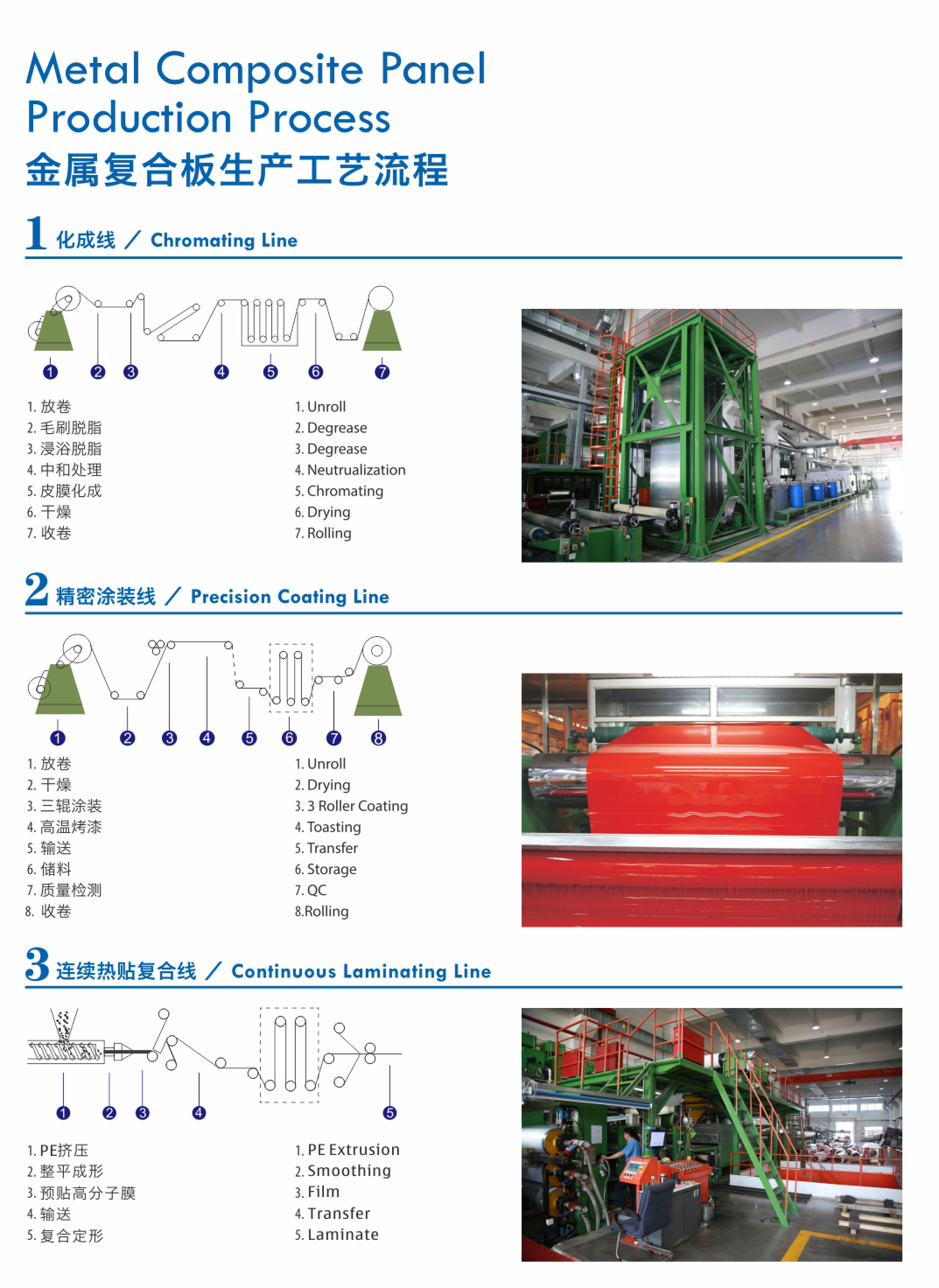

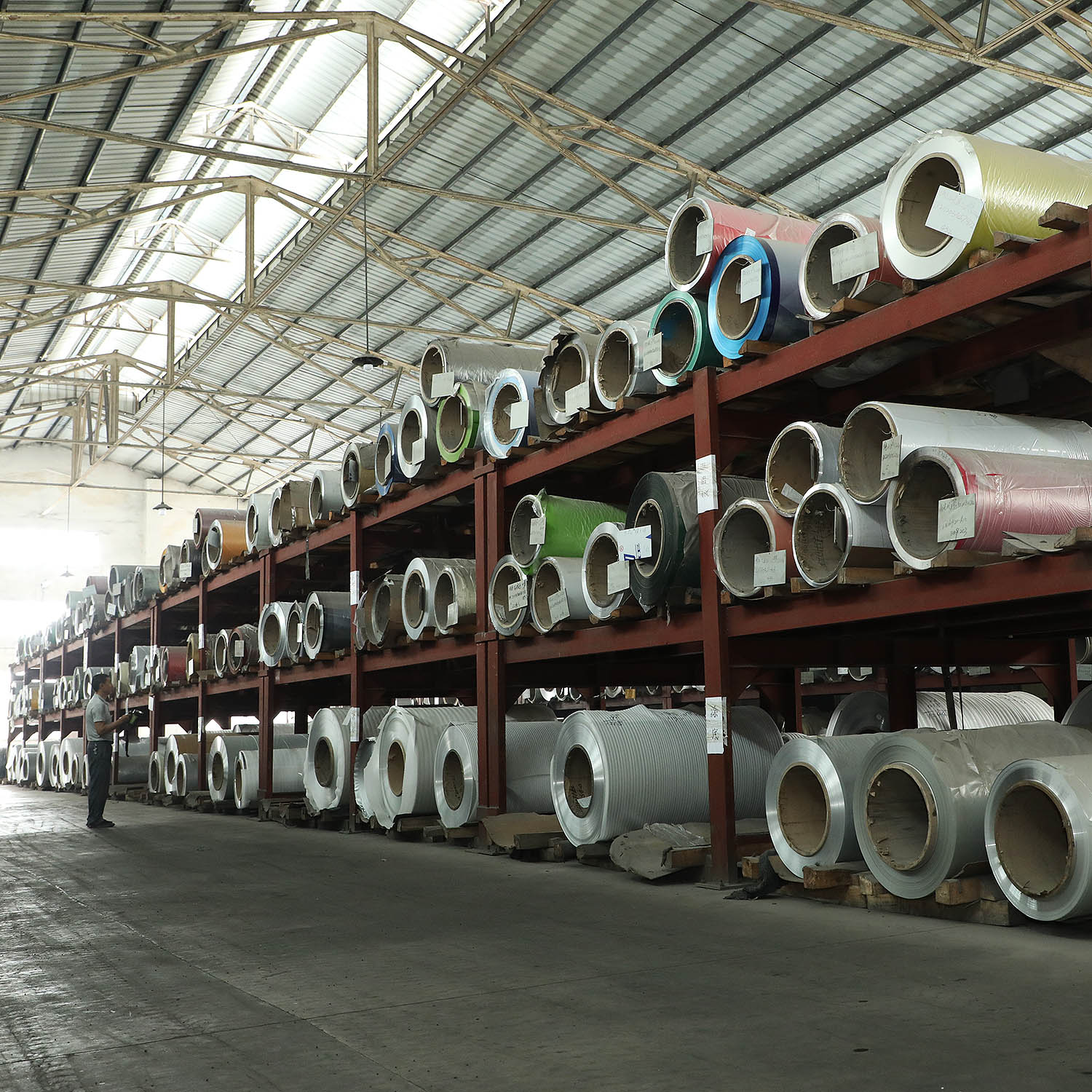

Aluminum coils

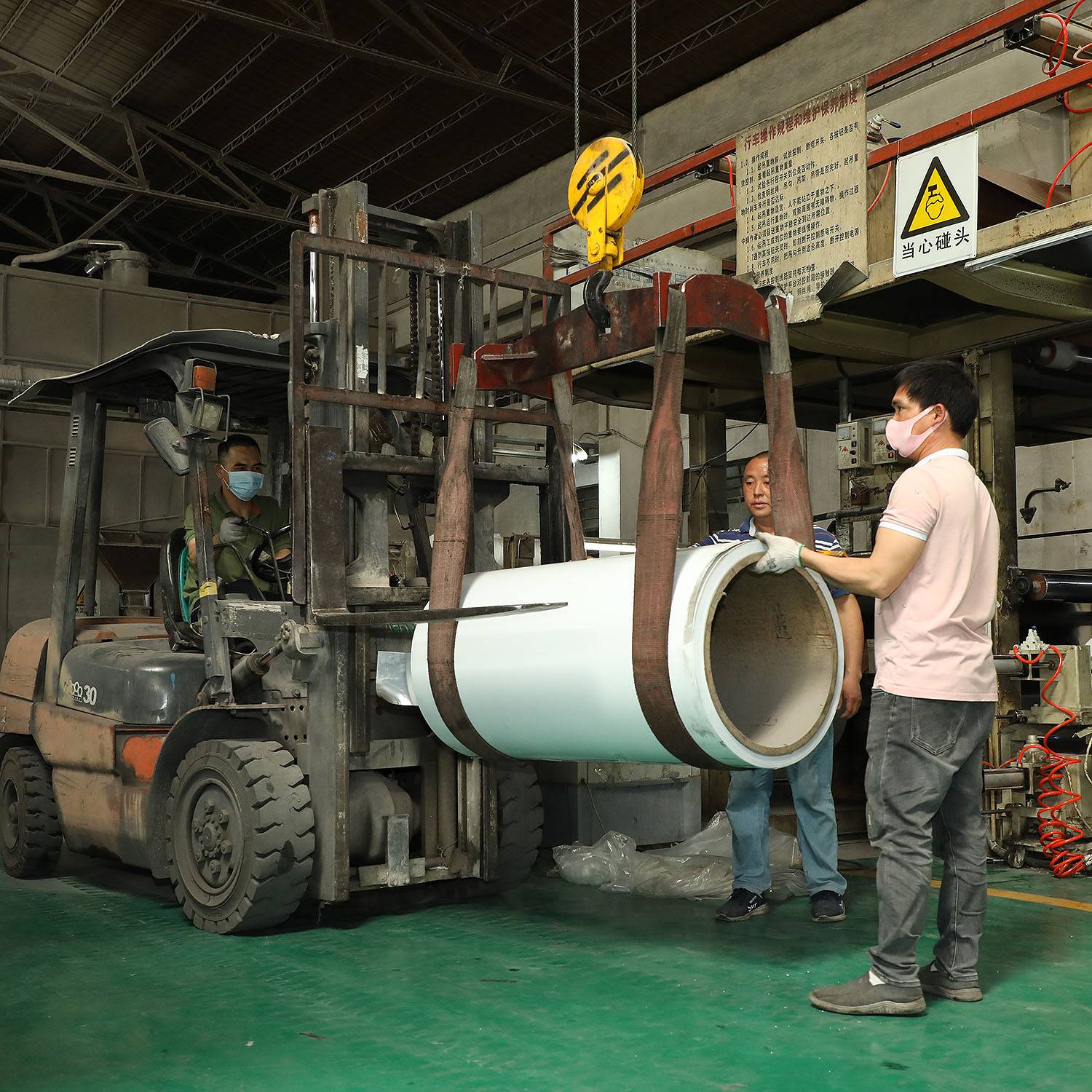

Coils transfer

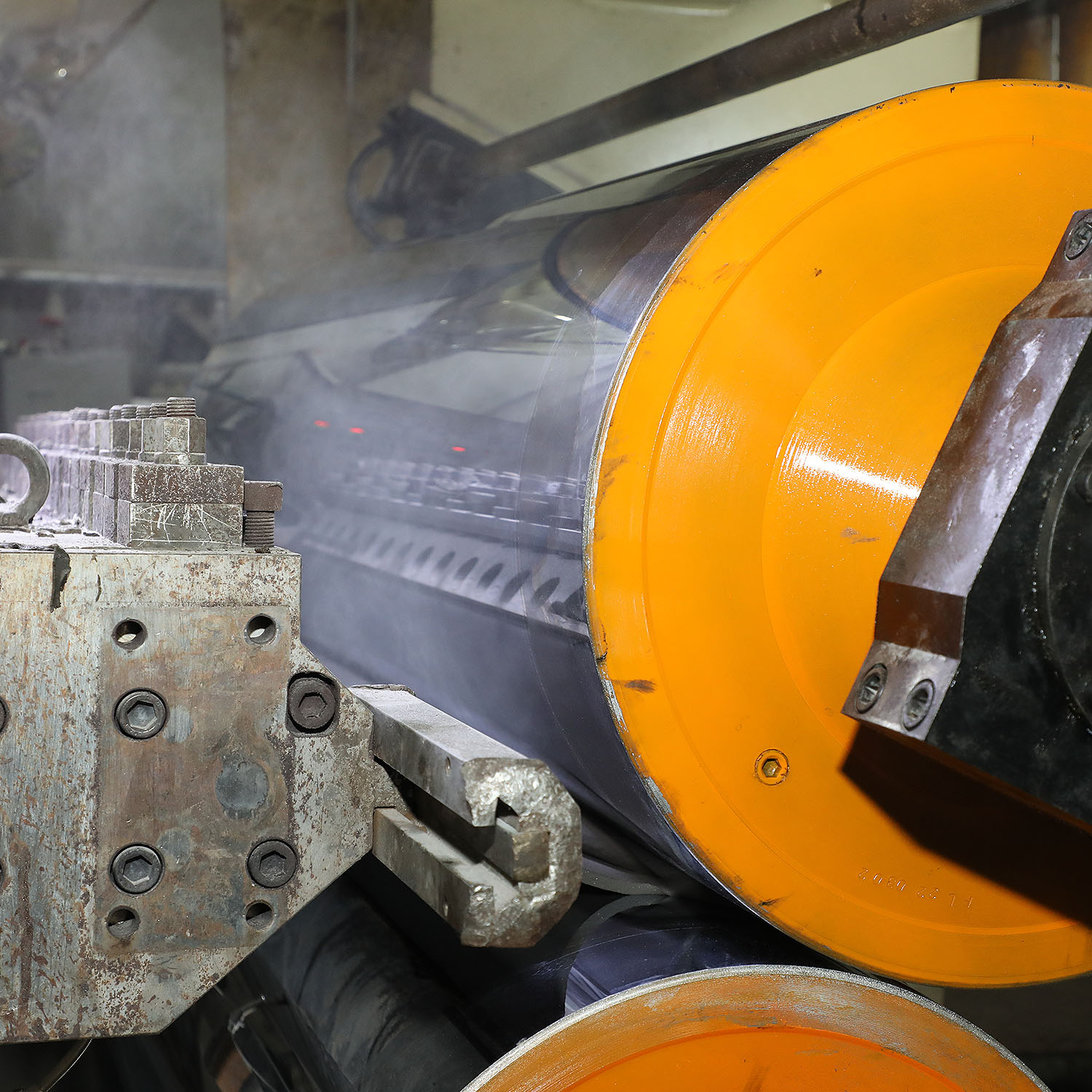

PE Extrusion

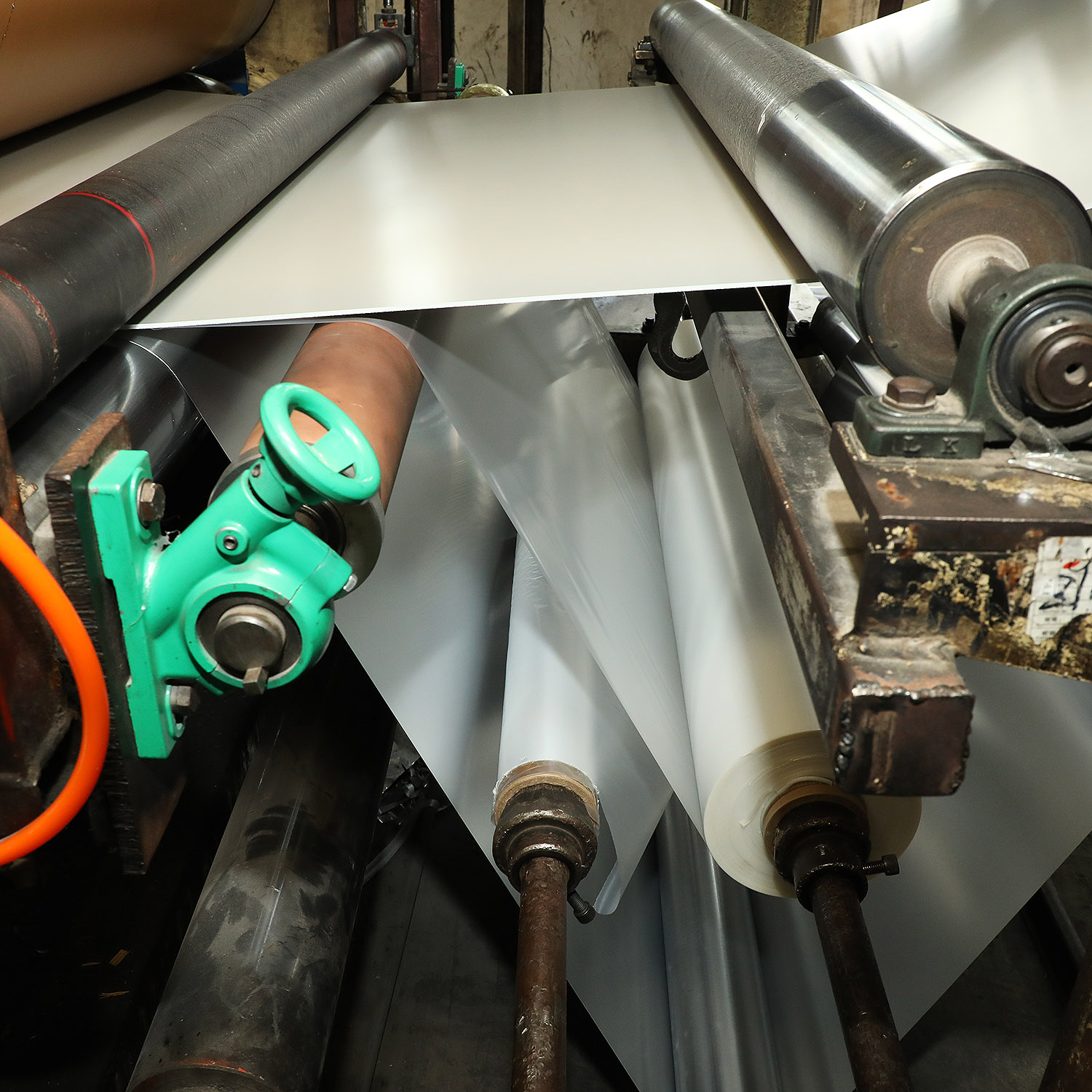

Poly film lamination

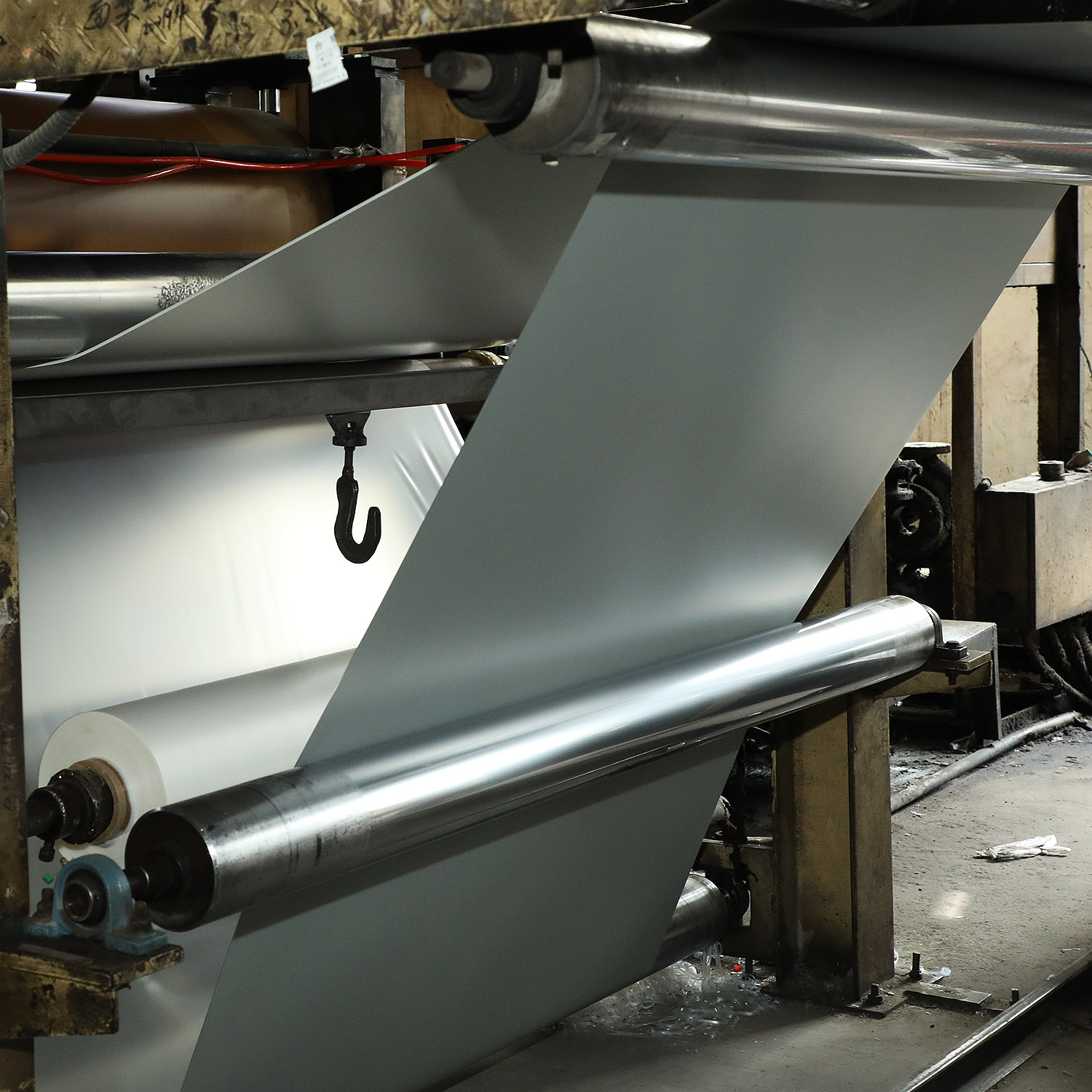

Composite

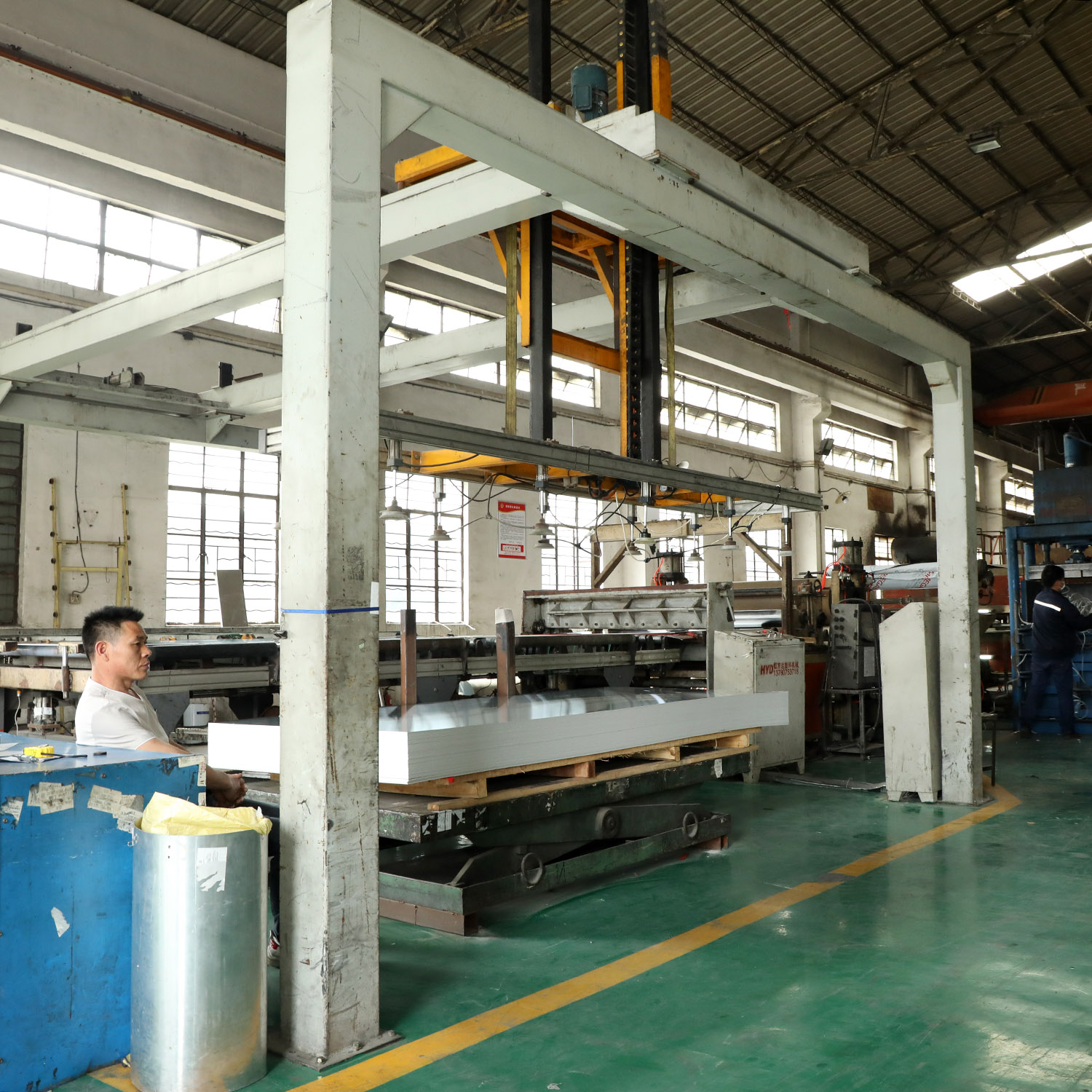

Trim and Cutting
Products Test

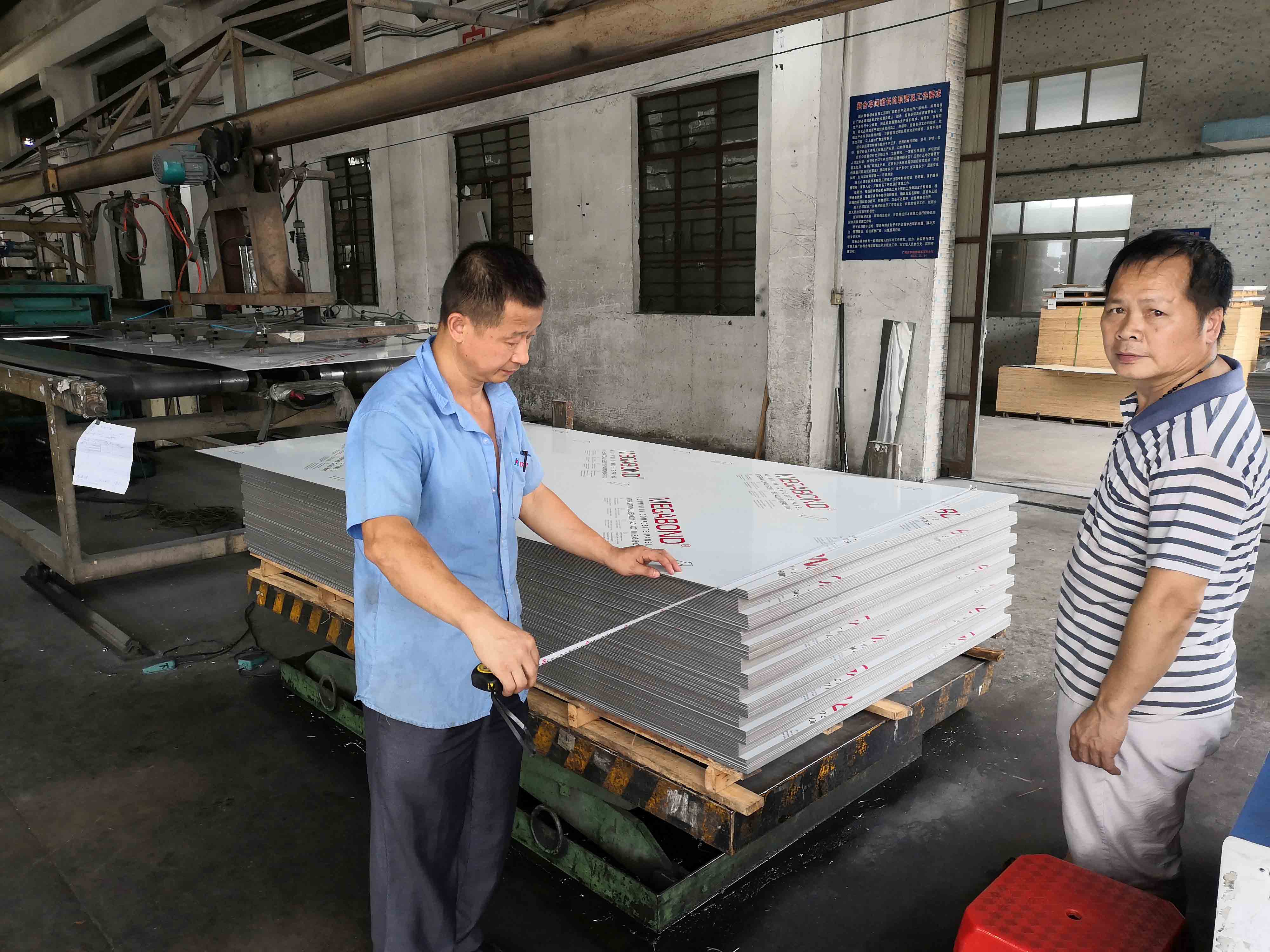

Width checking

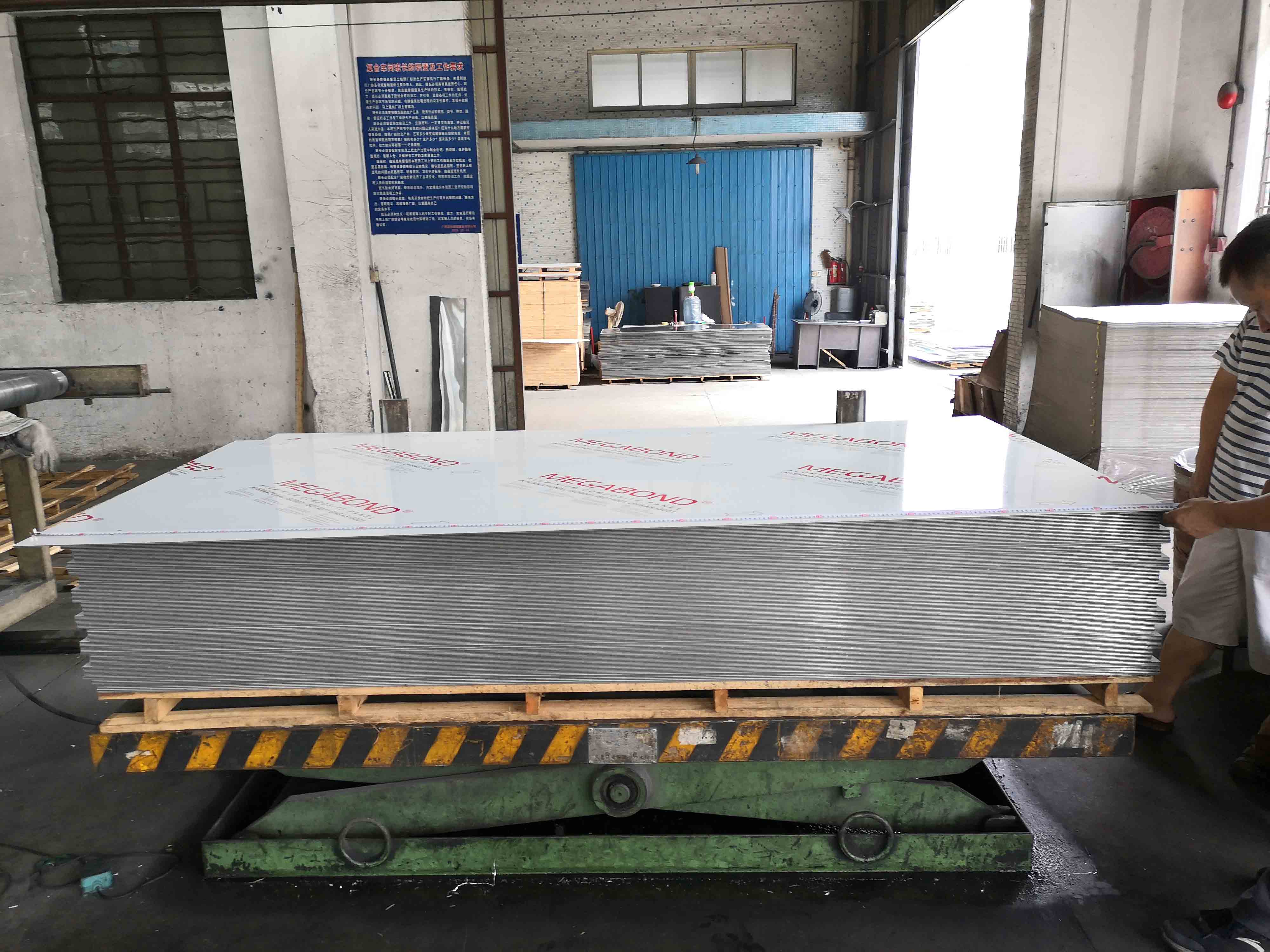

Length checking

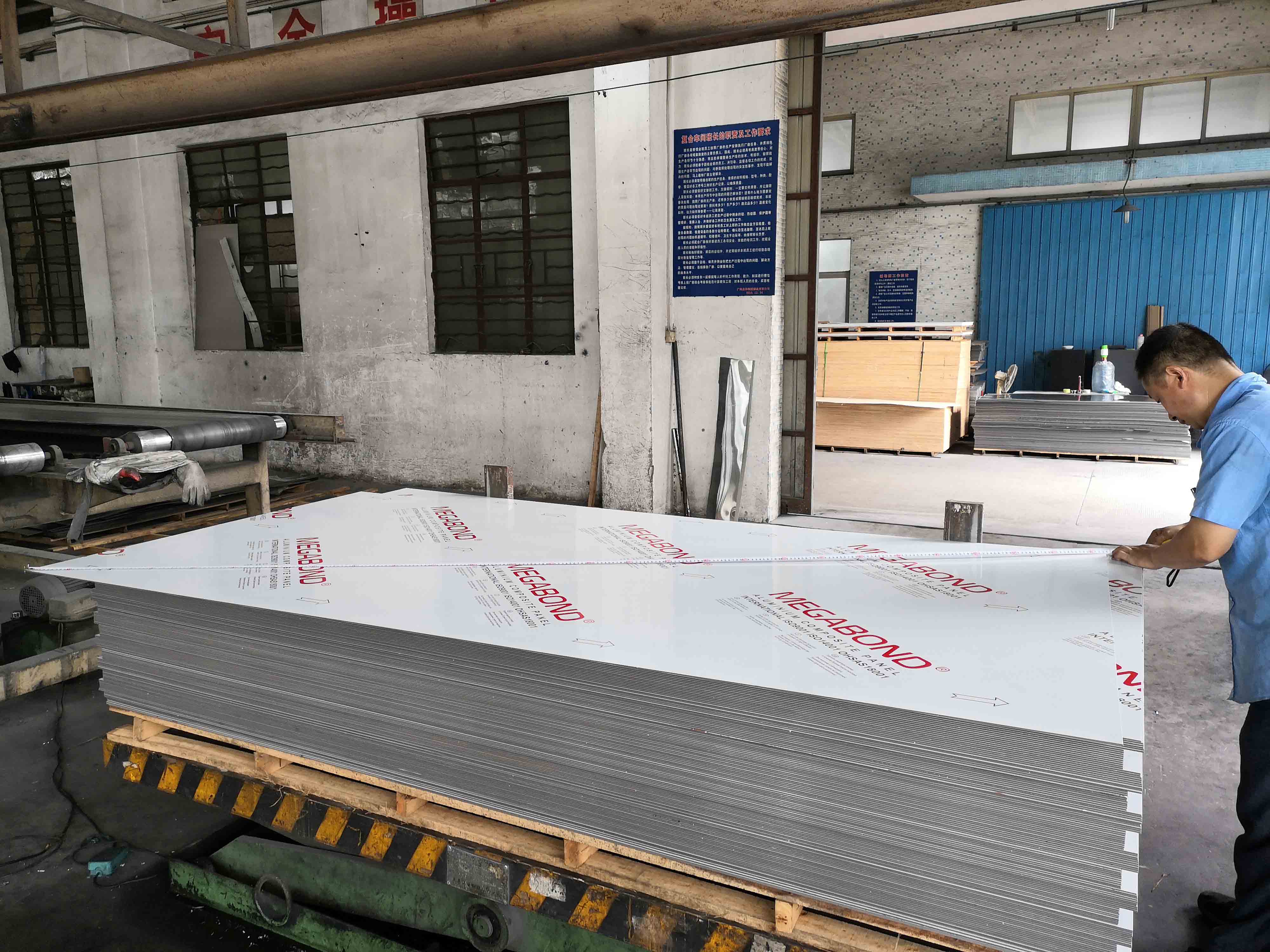

Diagonal (line) checking

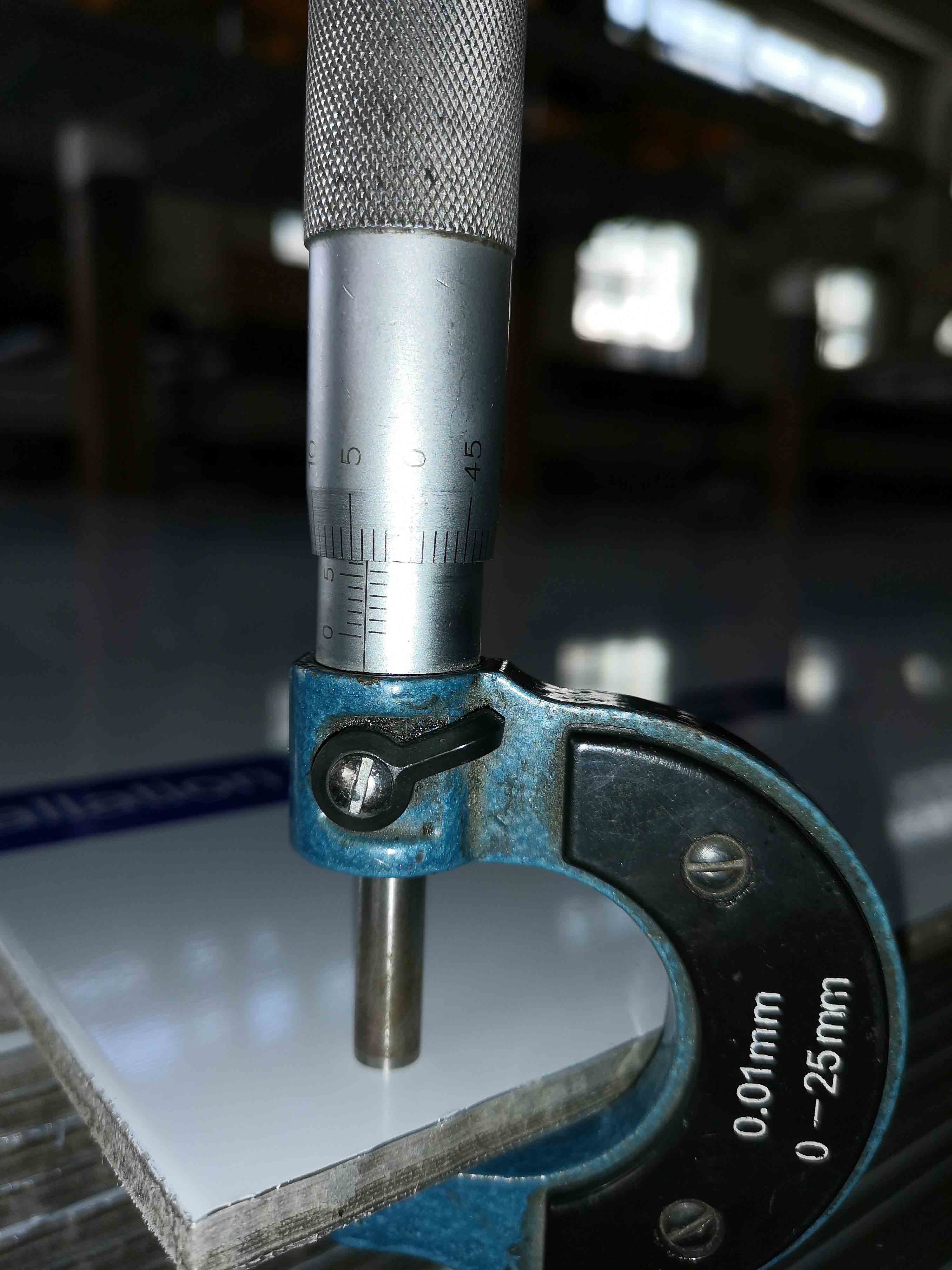

Thickness Checking

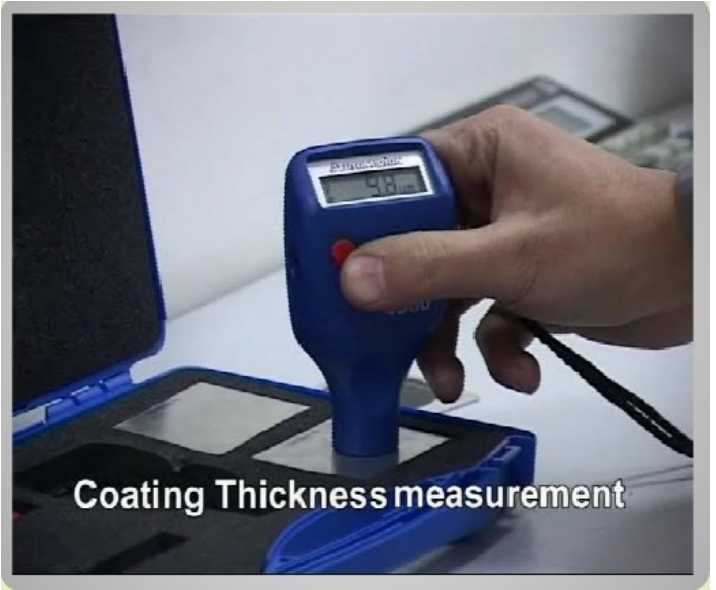

Coating Thickness Measurement

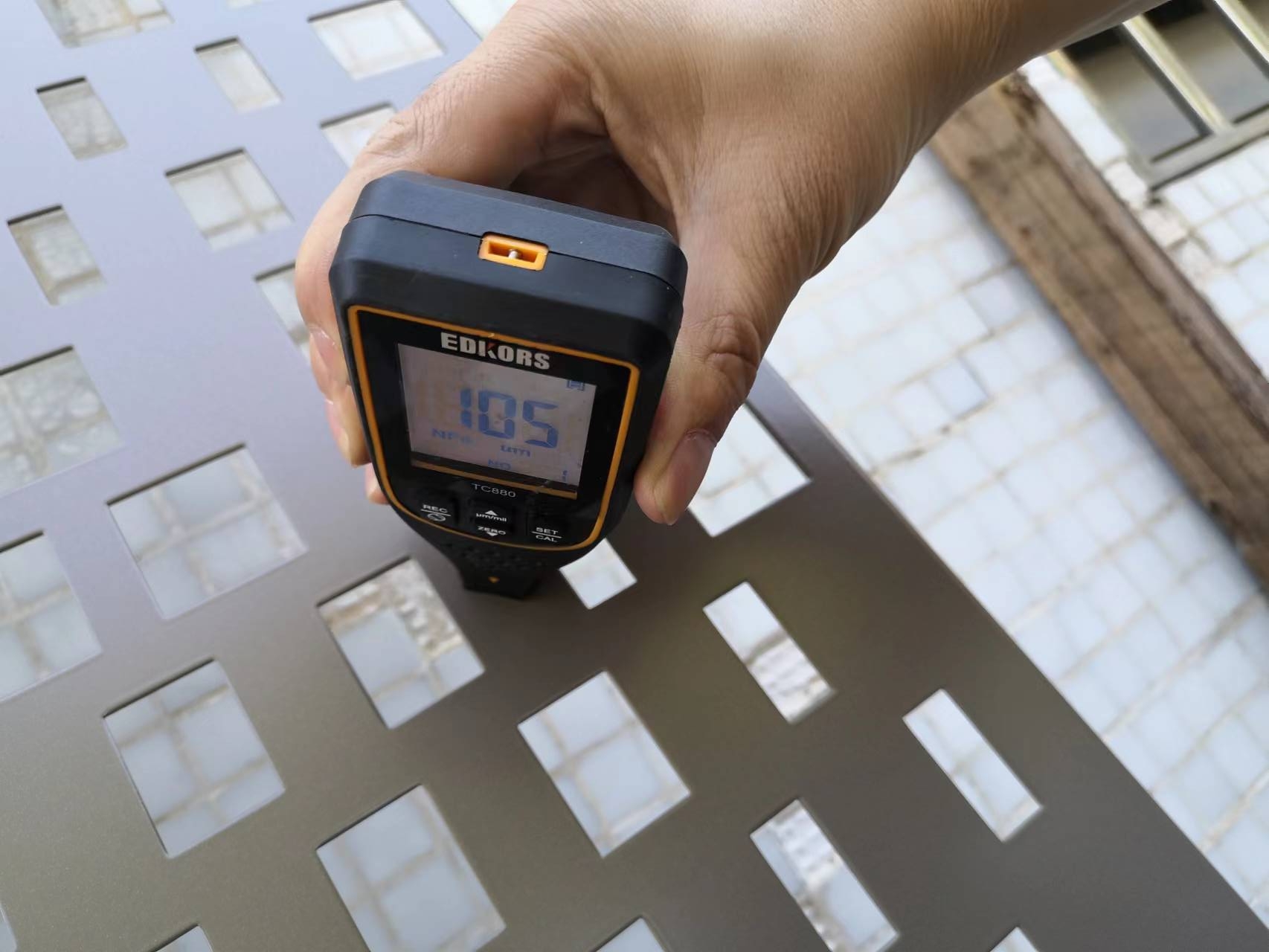

Color deviration deltal E TESTING

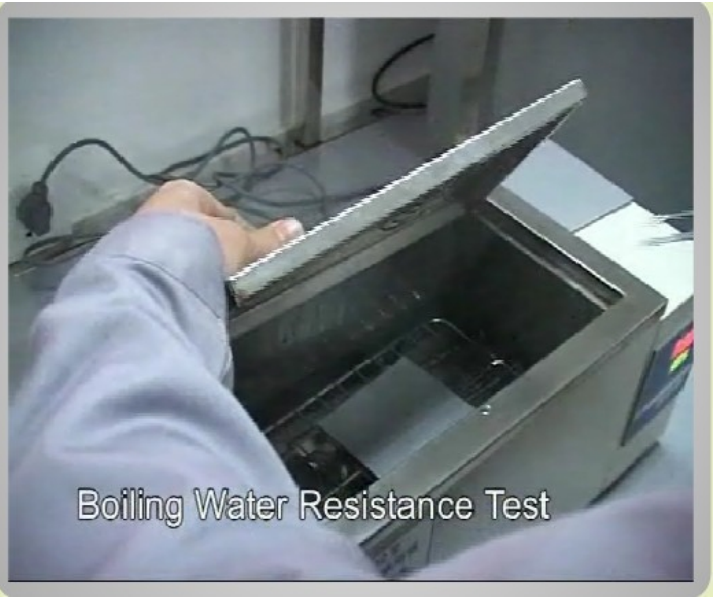

Boiling Water resistance Test

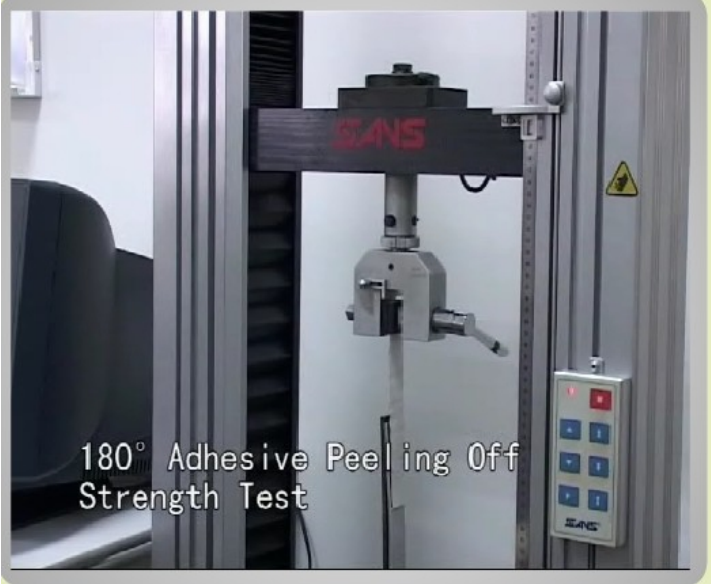

180 degree adhesive Peeling off strength test

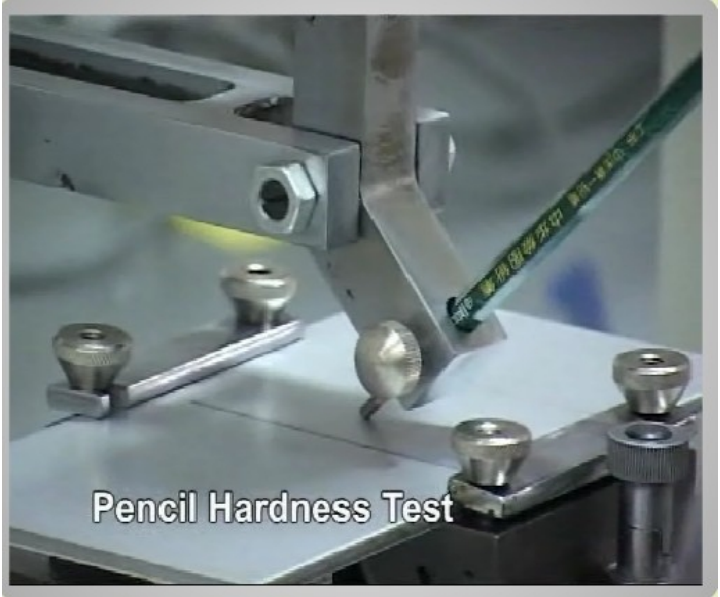

Pencil hardness Testing

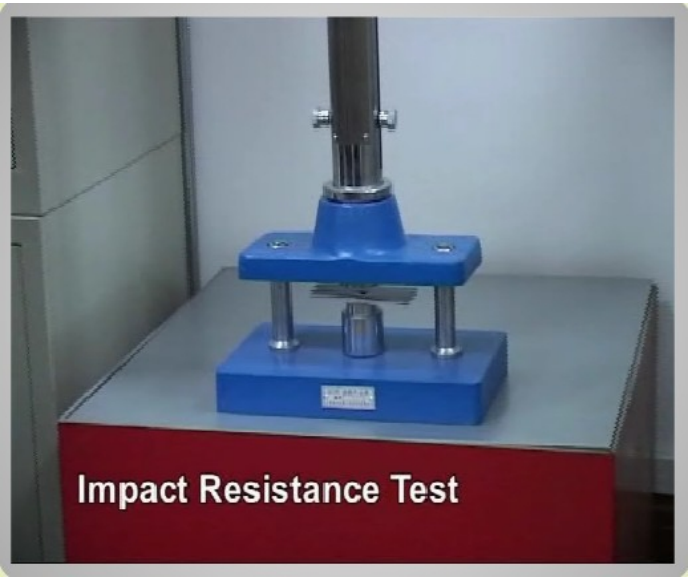

Impact Resistance Test

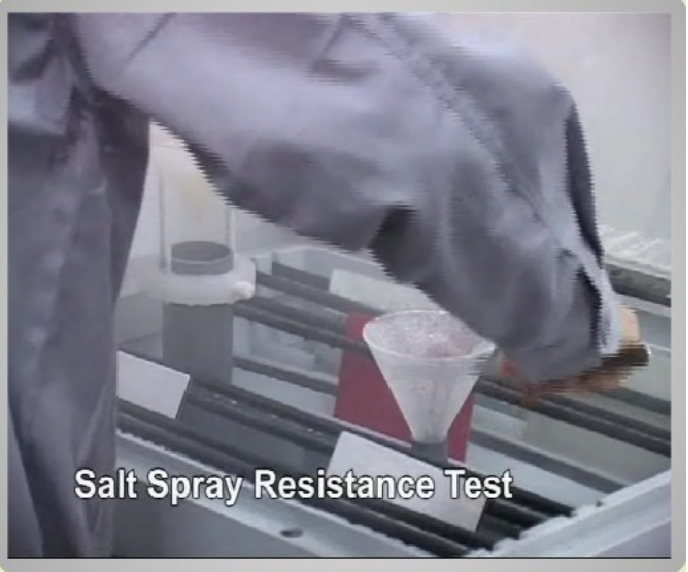

Salt Spray Resistance Test

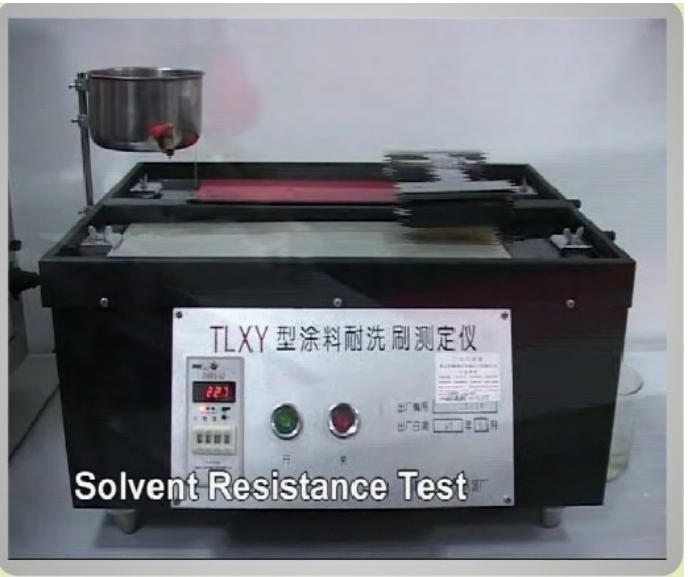

Solvent Resistance Test

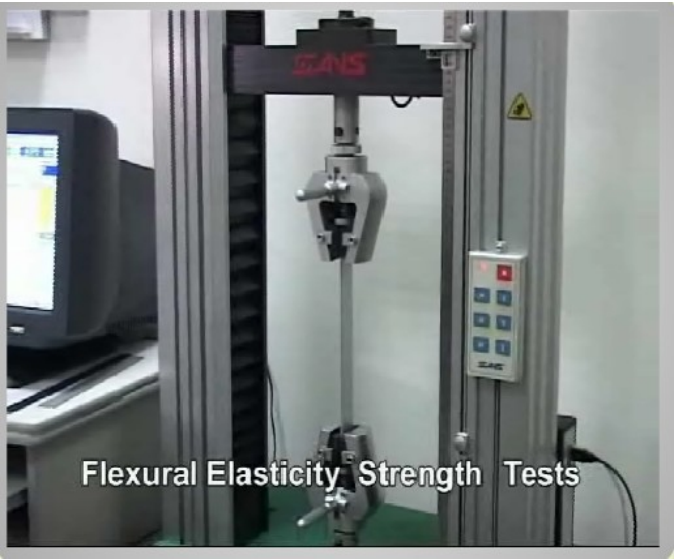

Flexural Elasticity Strength tests

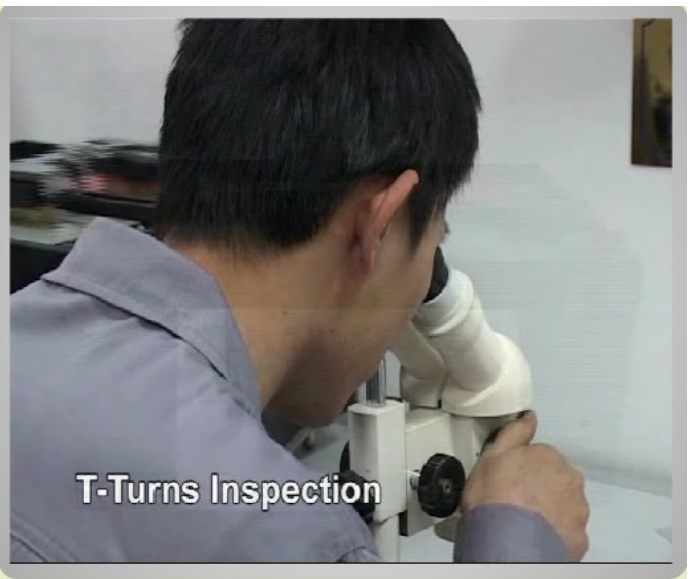

T Turns Testing

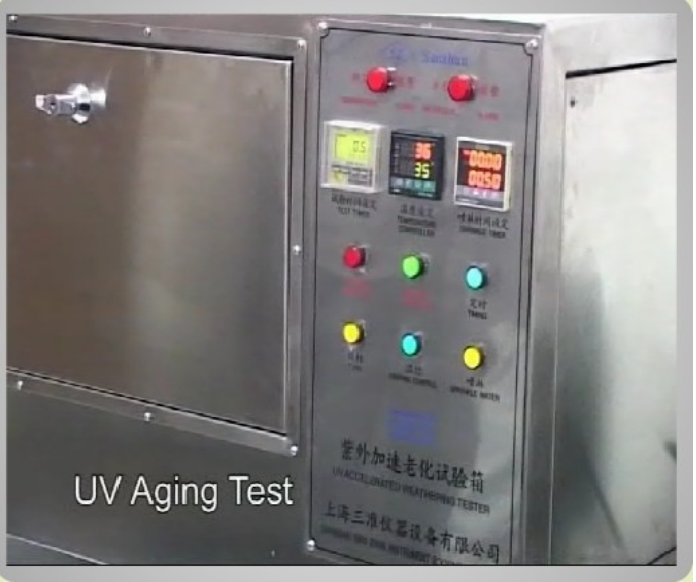

UV aging Test

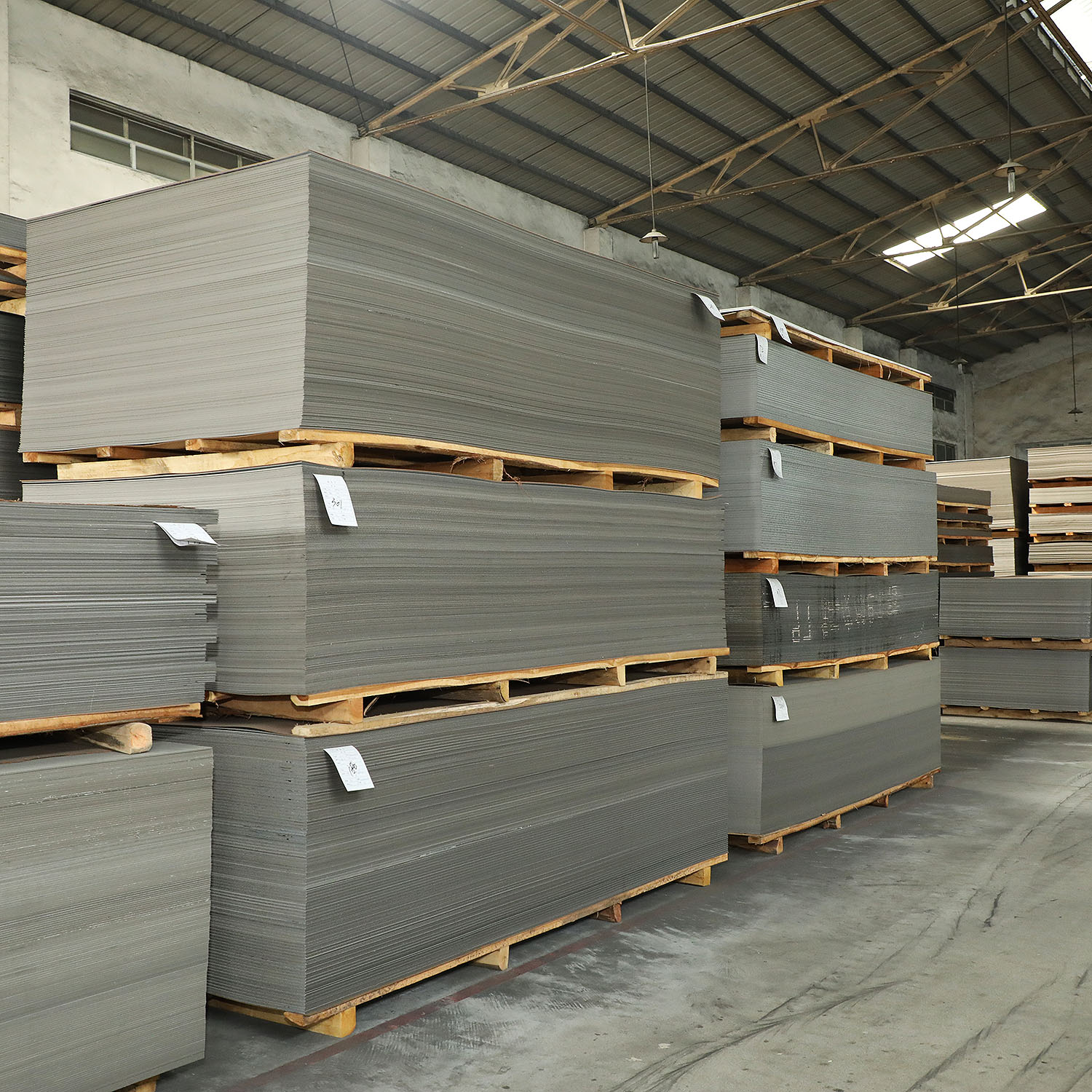

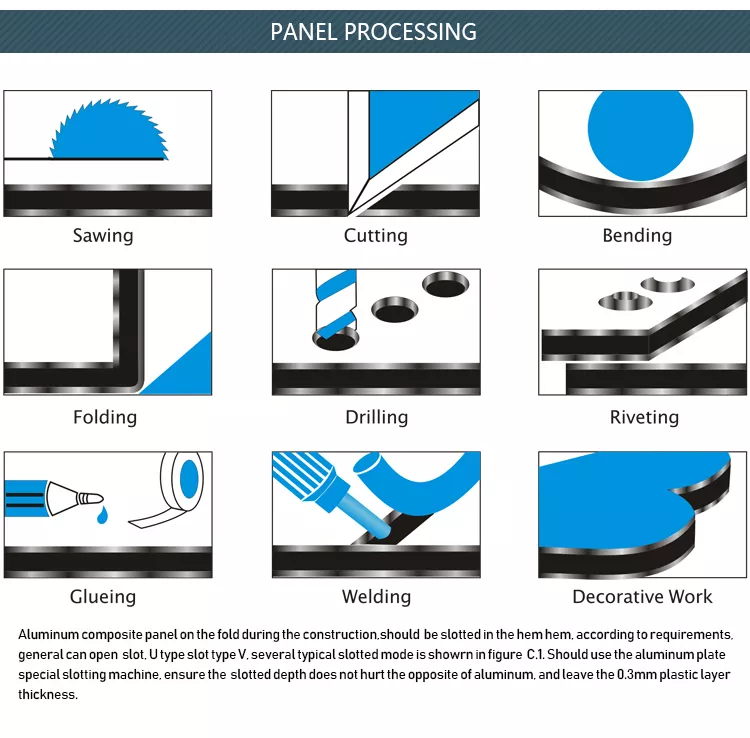

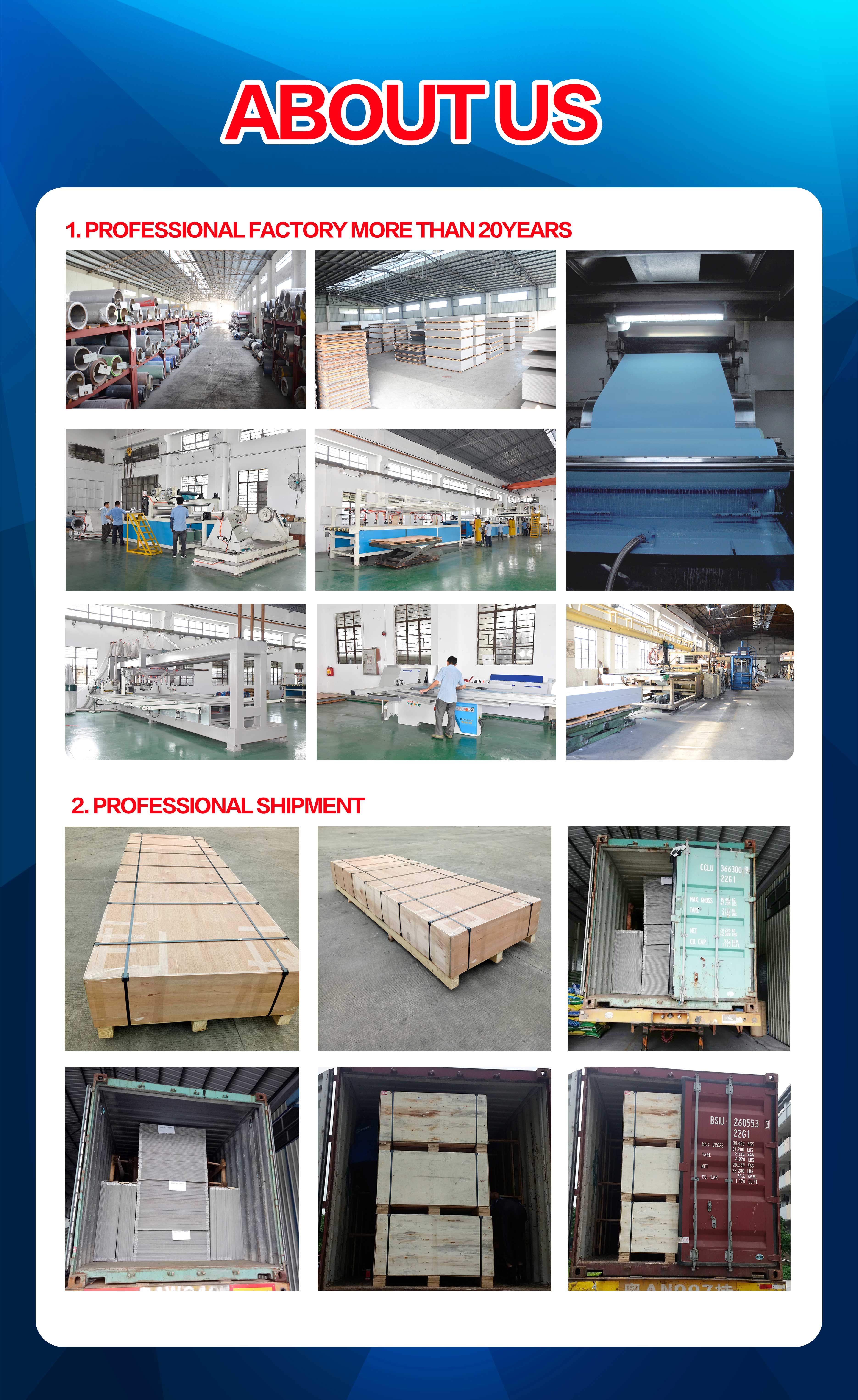

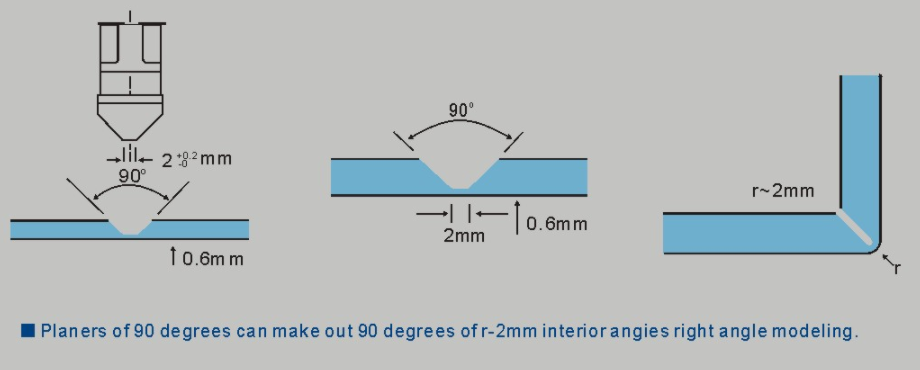

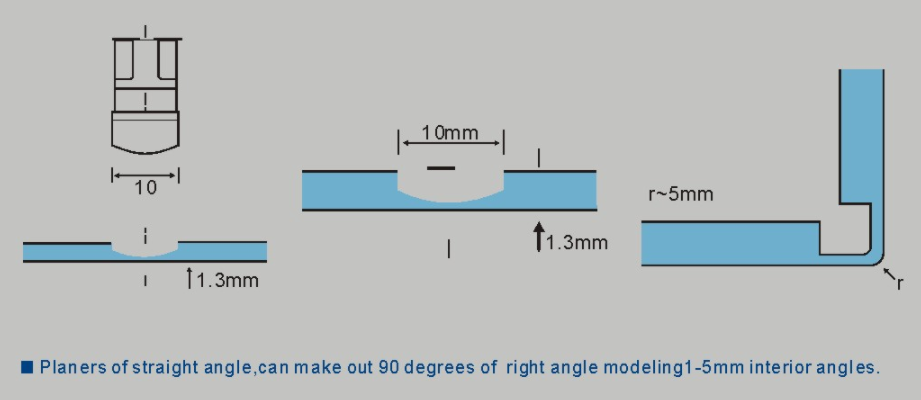

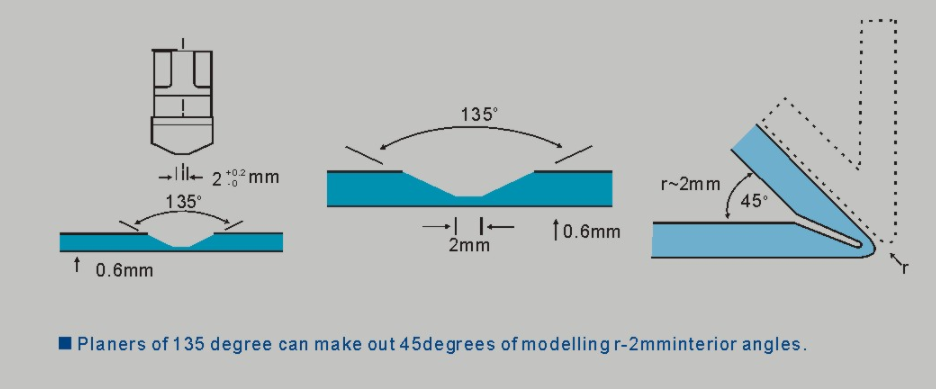

Production & Fabrication

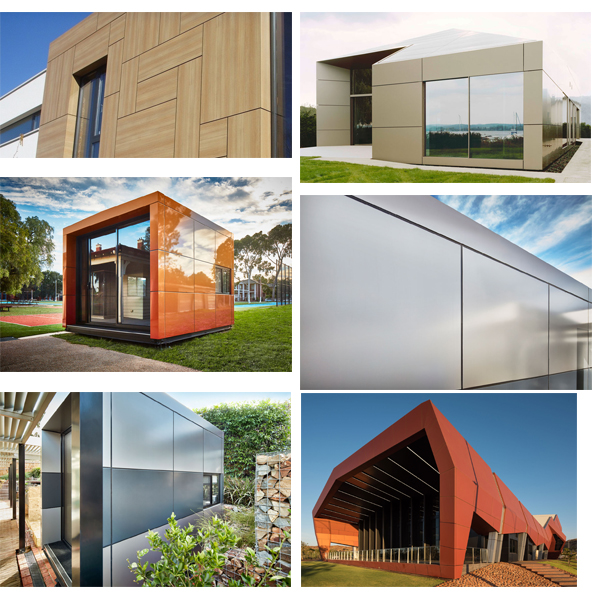

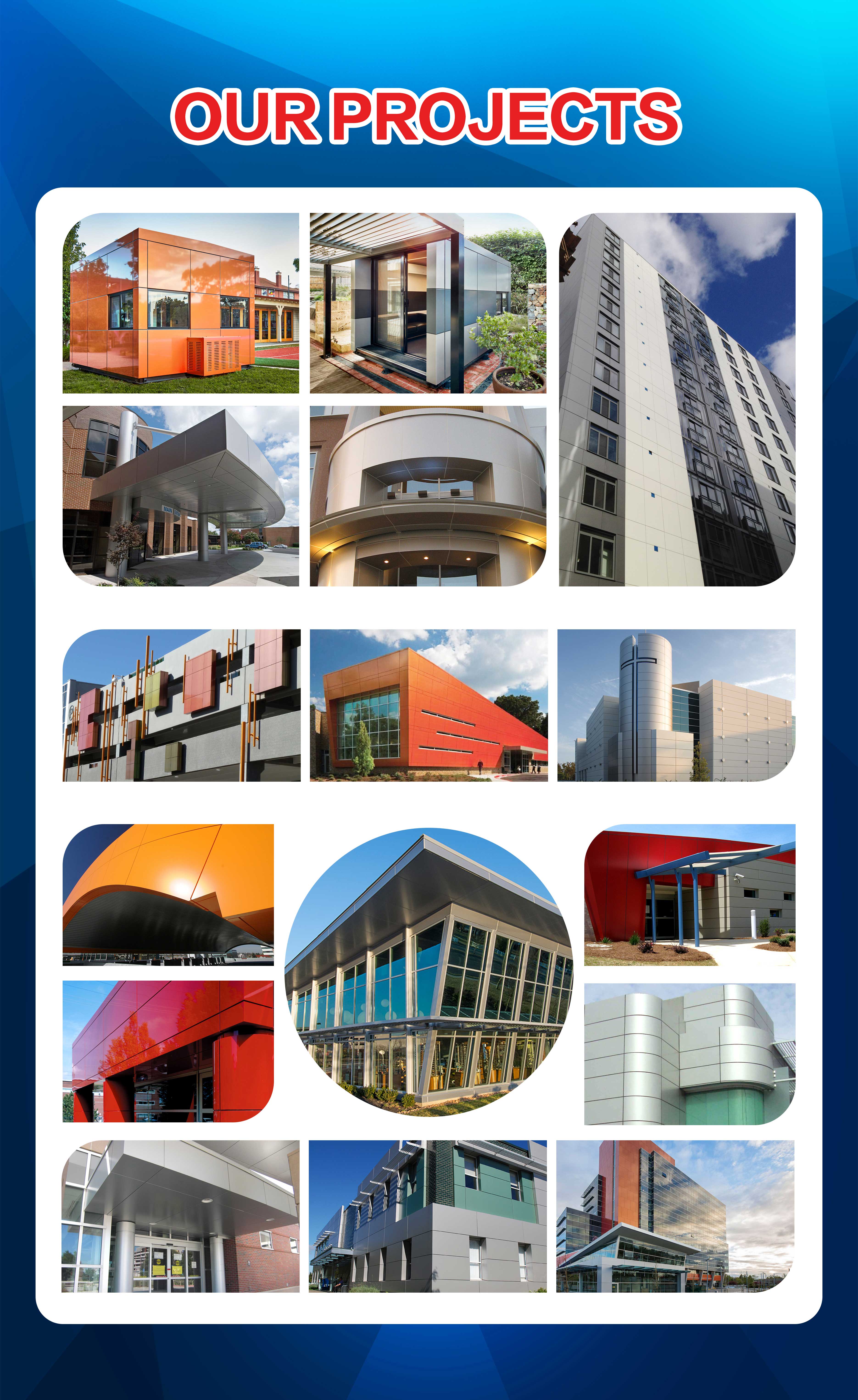

Aluminum composite panel Applications
- 1. Constructional exterior curtain walls;
- 2. Decorative renovation for store-added old buildings;
- 3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
- 4. Galleries, exhibition, saloons, stores, offices, banks, hotels, restaurants and apartments;
- 5. Advertisement board, display platforms and signboards;
- 6. Raw materials in industrial purpose;
- 7. Materials used for vehicle and boat.

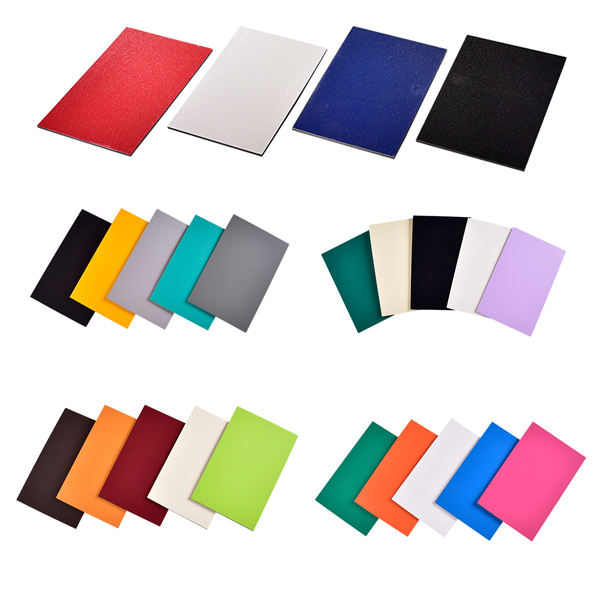

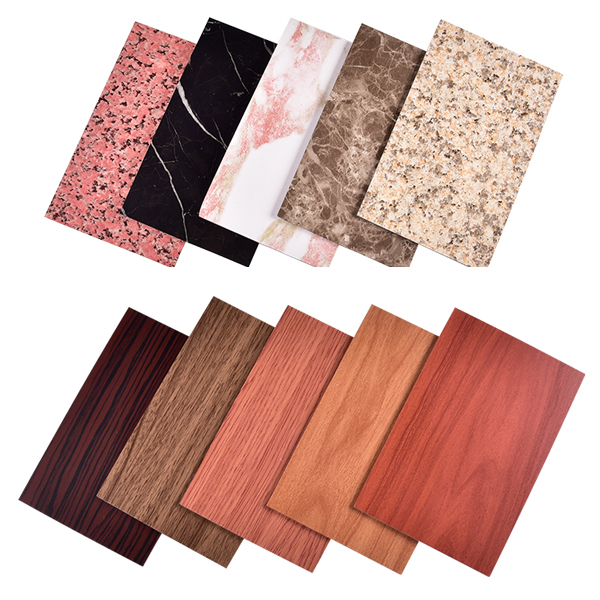

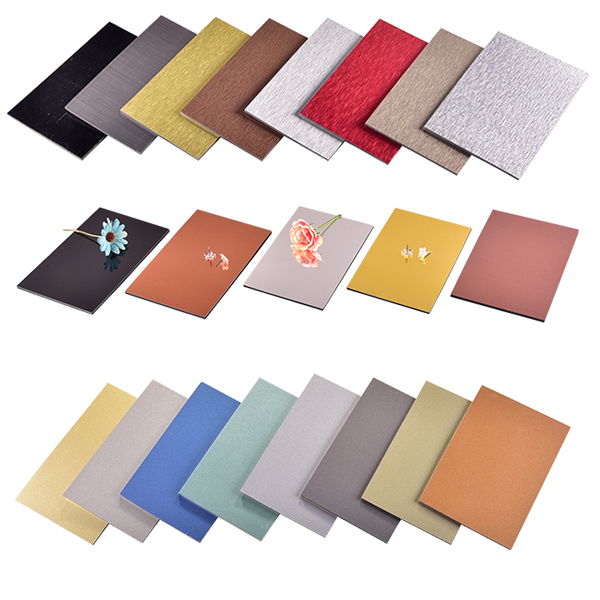

Hot sale

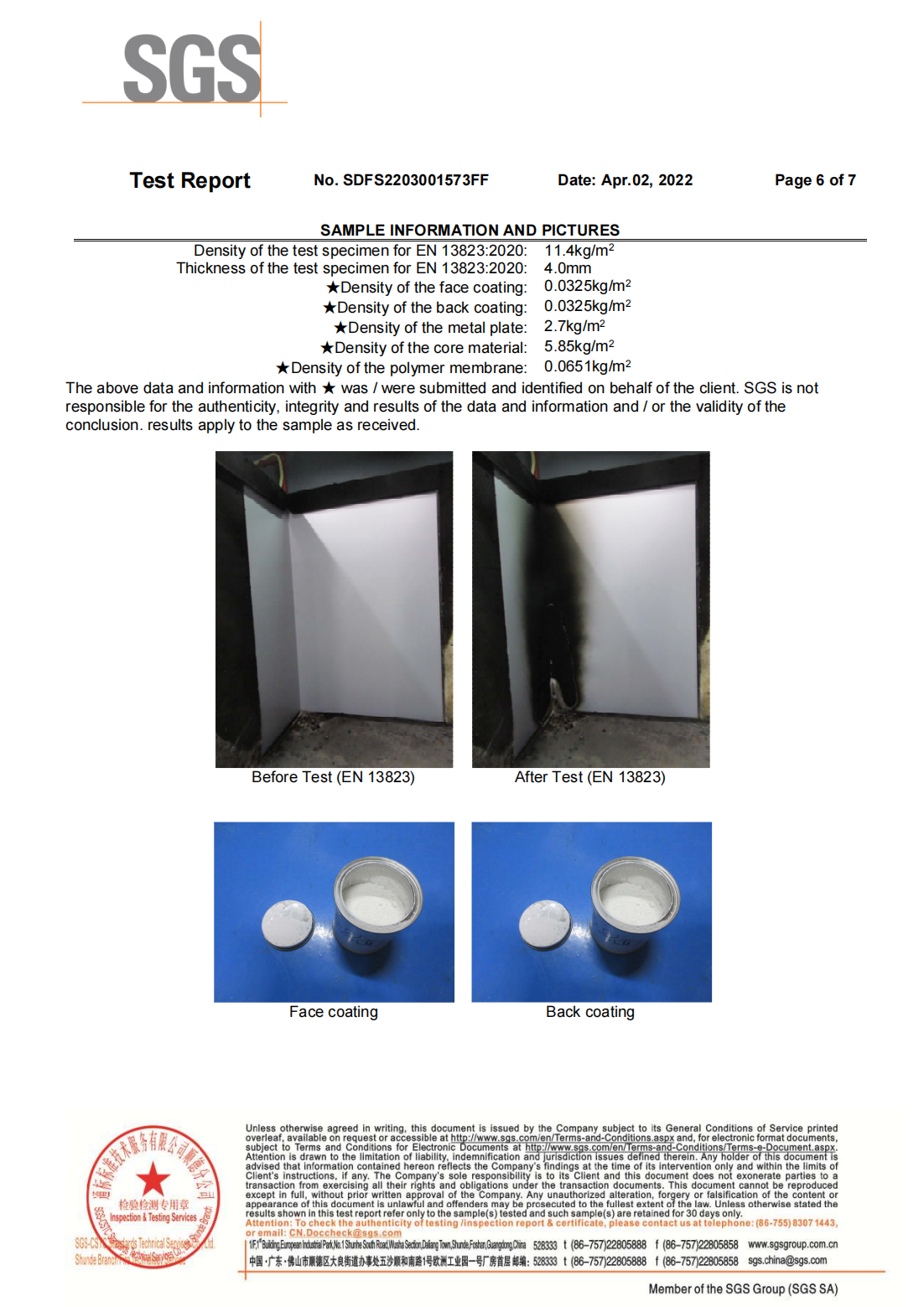

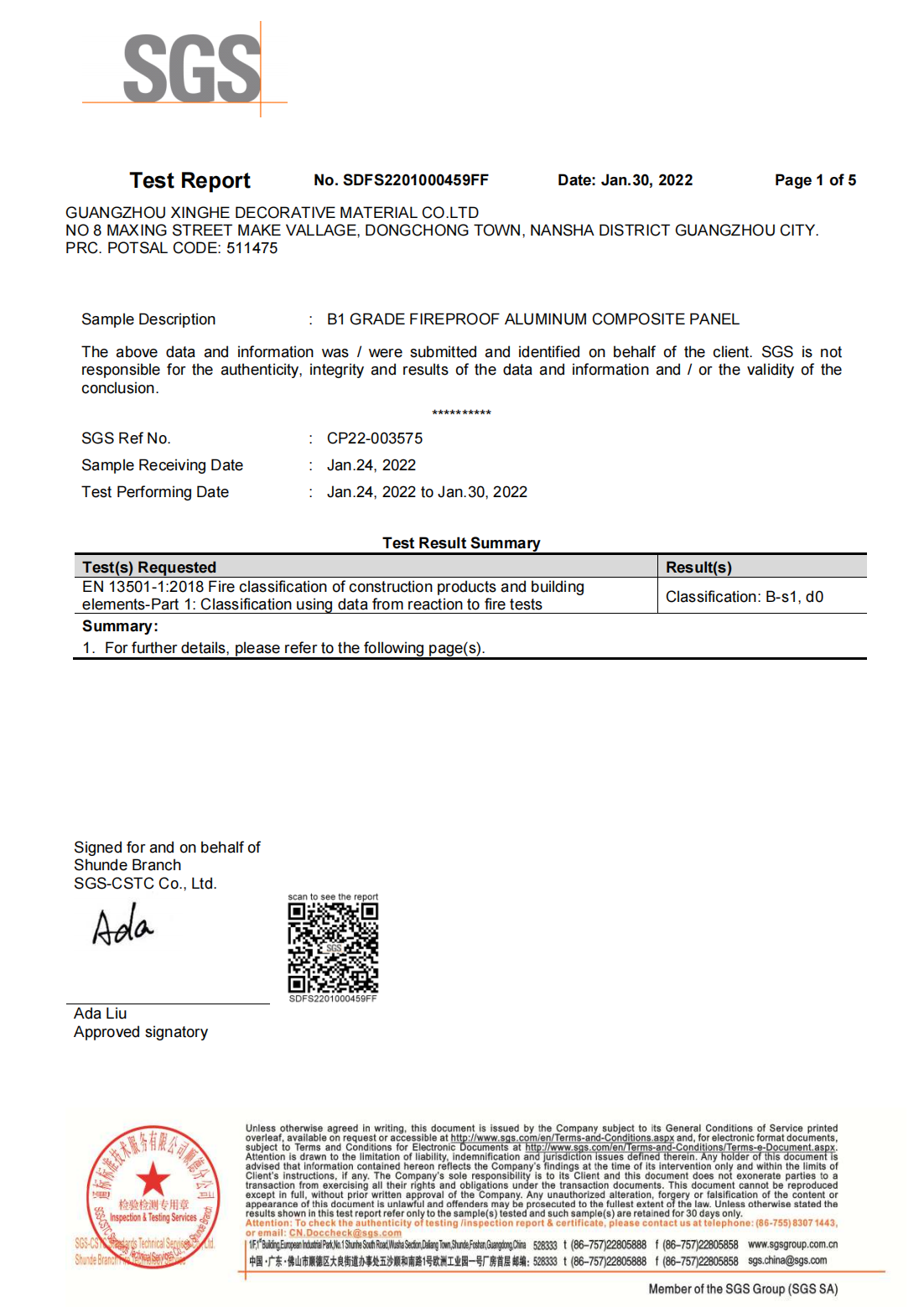

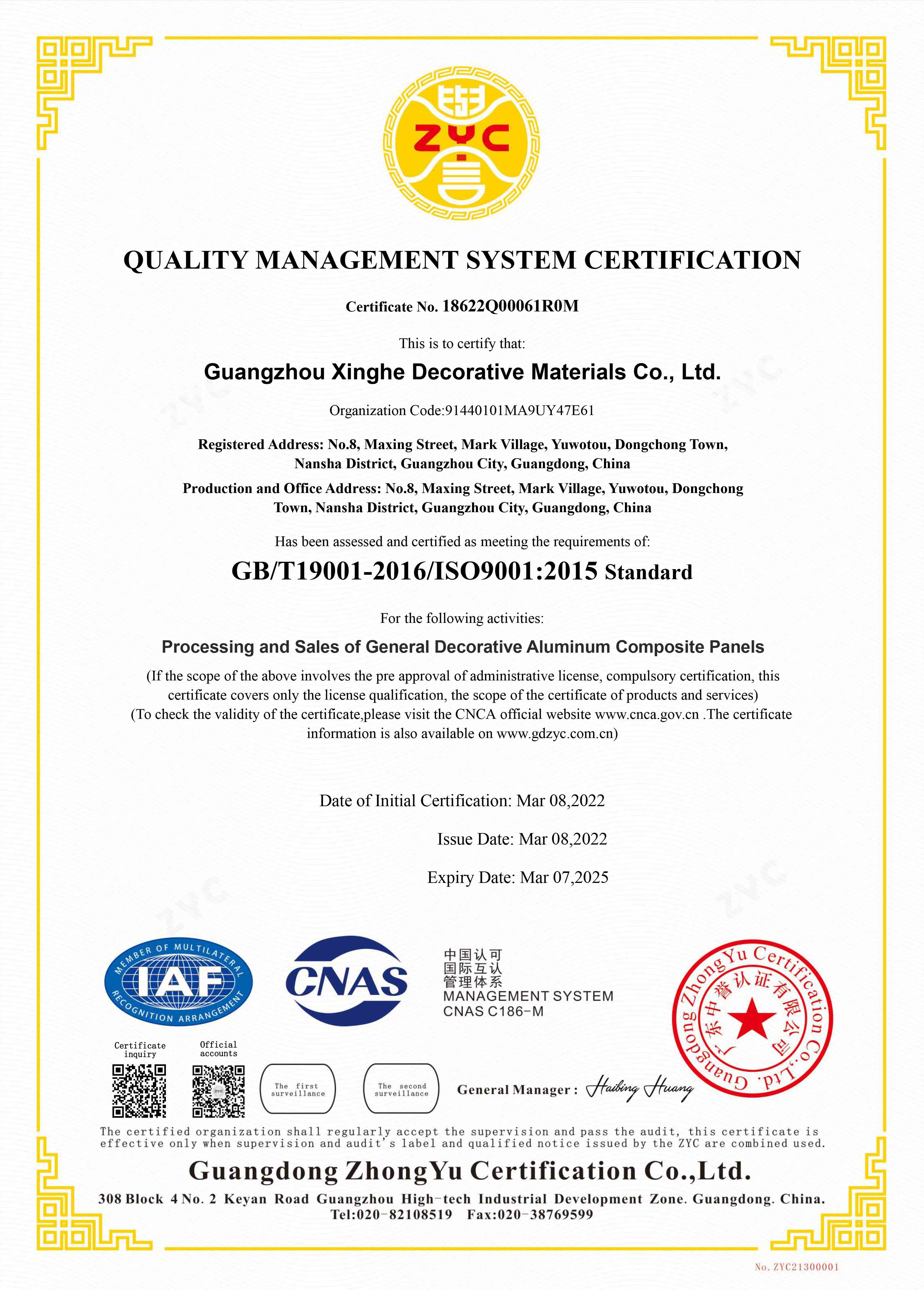

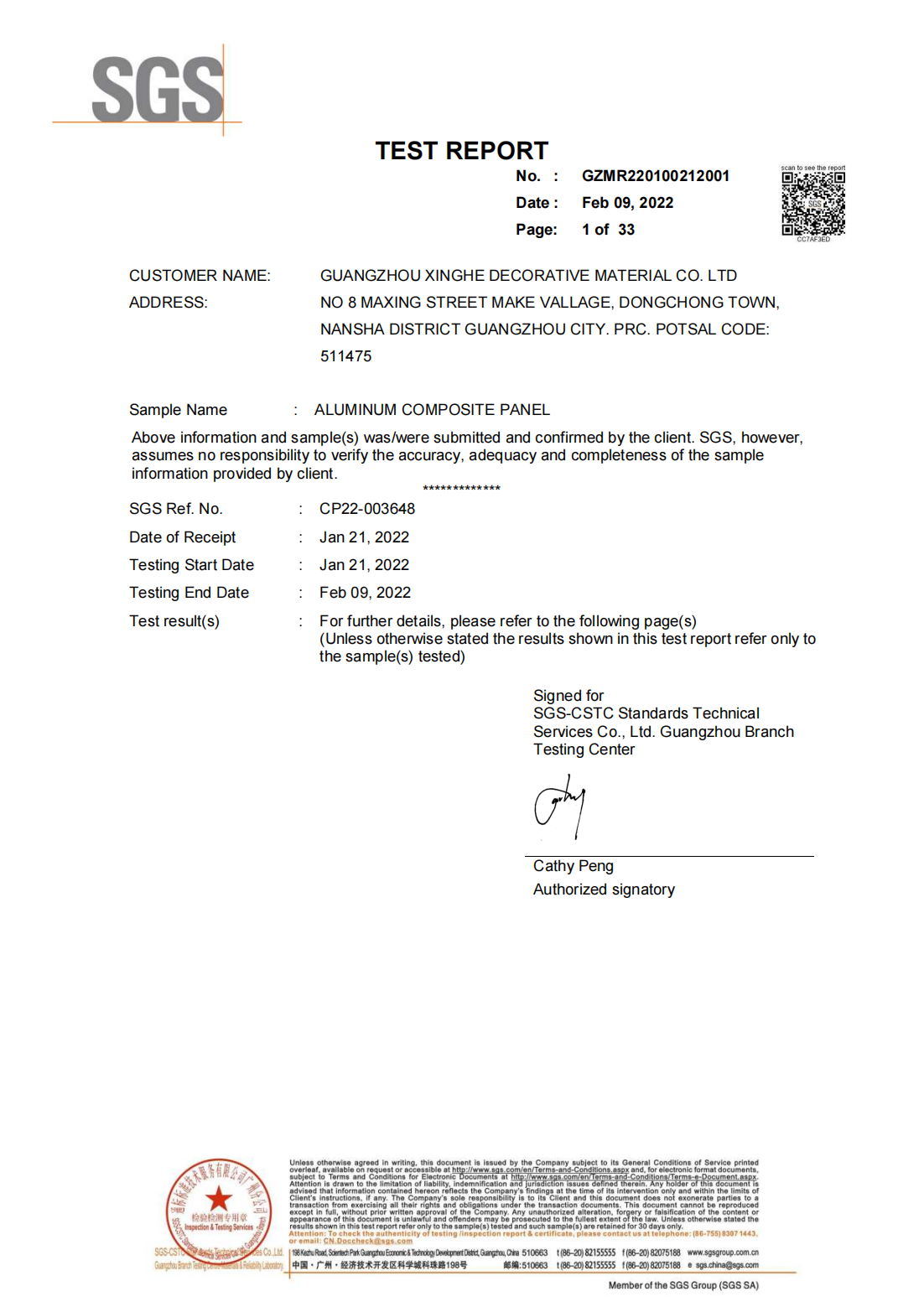

Certifications

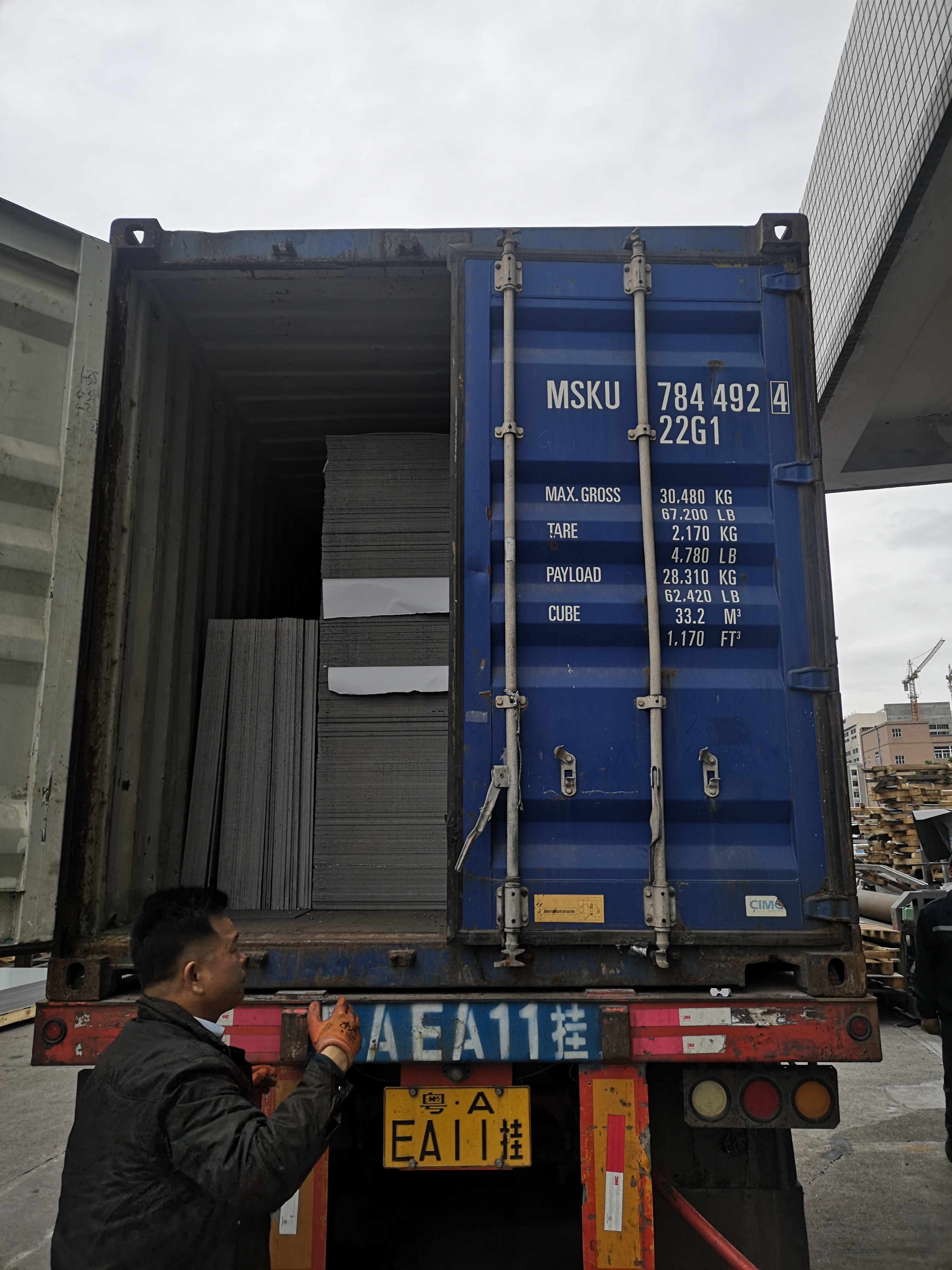

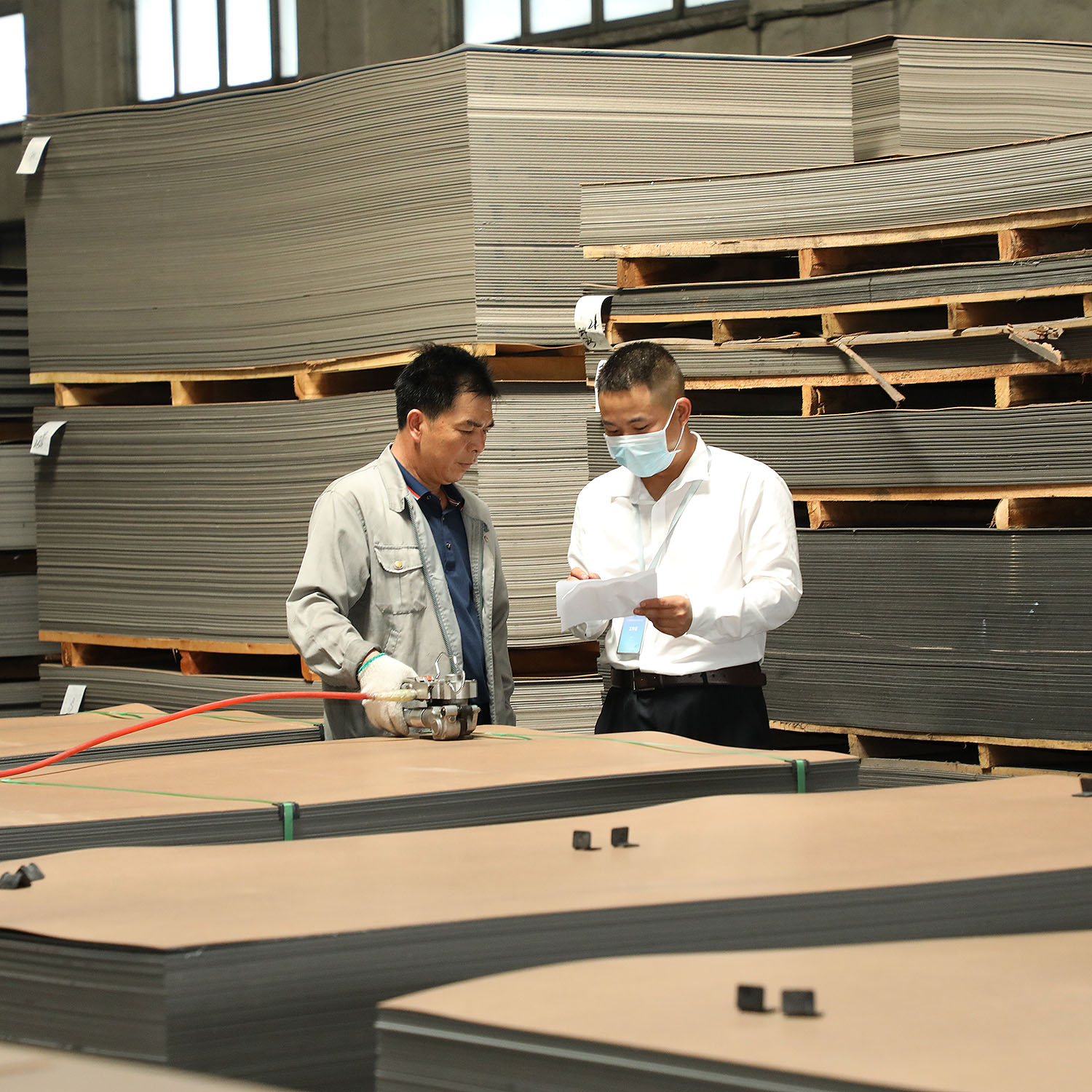

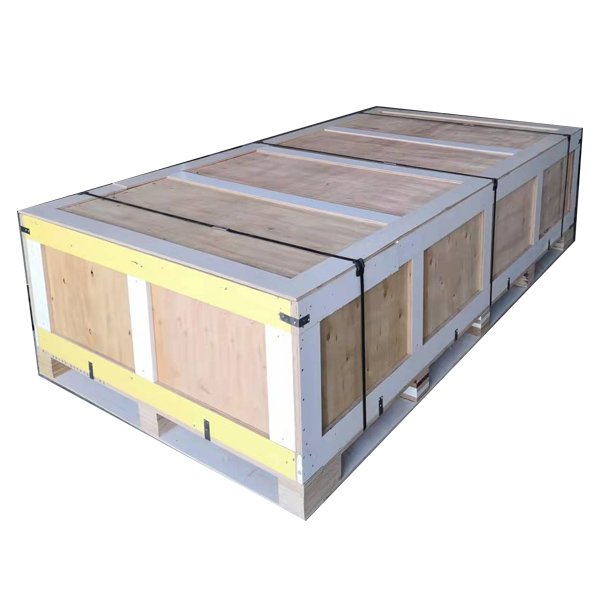

Package and shipment
Exhibitions
Thailand 19‘s Architecture
Canton Trade Fair
Philippines WorldBex
WHY CHOOSE US?
20+ Years History
Professional in manufacturing, marketing and service for 20+years.
Production capacity
4 aluminum coils coating lines, 10 production lines, 60,000 meter square/day. Your order leadtime is warranted.
Selected material suppliers
PPG/akzonobel/Kynar 500/ CHALCO, fast Delivery of Materials.
Flexible MOQ
Small order will be accepted depending on stocking color and thickness of Aluminum coils.
Excellent color Customization
Color picture, RAL/pantone Etc color code, sample provided to us for color customization.
More option for width customization
Normal 1220, 1250, 1500, 1570, 1575mm, but we also provide special width customization: 610mm, 900mm, 1100mm Etc.
OEM available
Just offer your design information, we will design your LOGO on your protective film.
Superior location
Guangzhou nansha, close to Baiyun airport and Canton Fair.
Strict Quality Controlling
ISO9001:2018, PPG, SGS, KYNAR500.
Free sample
Free sample offered, 7 days delivered to you.
COMPANY PROFILE
Guangzhou Xinghe Decorative Material Co., Ltd is one of the biggest decorative building materials enterprises in China. It is specialized in producing decorative building materials such as Fire-rated B1 Aluminum Composite Panel, Fire-rated A2 Aluminum Composite Panel, PE/PVDF/FEVE Aluminum Composite Panel, Film Coated Aluminum Composite Panel, Aluminum honeycomb panel Fire-rated A2, Aluminum solid panel Fire-rated A2, and Aluminum ceiling system. Our company was founded in 1999. The factory covers area of 20,000 square meters, with nearly 100 people of various kinds of advanced management, design development and production staff. It has 12 advanced international technology production lines of aluminum composite panels, which can produce two-meter width aluminum composite panel curtain wall, with an annual production capacity of 15 million square meters ACP, and 5 million square meters of aluminum honeycomb panels. Xinghe production lines include the most complete varieties, designs and colors in the field.
Frequently Asked Questions (FAQ)
How soon can I get a reply?
1 hour in daytime. 6-8 hours in sleep time.
Can I get a sample?
Yes, sample is free, only freight collected. about 30-60dollars for 1kg weight.
Can my order be produced by my brand?
Yes, we could produce all goods with your brand or LOGO.
What’s your delivery time?
Normally 20days after deposit. if have stock raw materials, 10 days enough.
Is there a minimum order requirement?
MOQ is basis on Alu thickness; 0.3mm Alu MOQ 600m2.
Do you provide accessories service?
Yes, We supply installation accessories for aluminum composite panel, such as aluminum extrusions, sealant etc.
