Landsharp Aluminum Single Double Hung Window Sliding Sash Triple Glazed Windows

Product Description

Thermal Break Aluminum Alloy Sash Window Overview
Product Description
SERIES Thermal Break Aluminum Alloy Series Sash Window
Warranty More than 5 years
Profile 6063-T5 Thermal Break Aluminum Profile
Thickness 1.8-2 mm Aluminium Thickness
Glass Options Tempered glass / hollow glass / laminated glass / Bullet-proof Glass / coated glass / low-e glass / heat reflecting glass / art glass
Hollow Glass Recommendation Double Glazing Tempered 5mm+12Ar+5mm
Hardware GU
Surface Treatment Akzo Nobel T1010 powder (global 10-year warranty), Anodized Wooden Grain, PVDF Coating
Opening Mode Vertical Sliding
Project Cases
Thermal Break Sash Window Project Cases Showcase
Sash Window Structure Advantage
Advantage
1
PIN GLUE INJECTION PROCESS Fill the gap between the aluminum and corner code
2
Multi Cavity Insulation Strip PA66 high thermal insulation strip is used to completely block the heat conduction path of the profile
3
Concealed Drainage Design Avoids the possibility of rainwater backflow

Adopt high strength profile and strict production process

The structural design is firm, the wind pressure strength is far better than the plastic steel Windows and ordinary aluminum alloy Windows, can withstand high wind pressure, to ensure the safety performance of doors and Windows in wind and rain weather, especially suitable for coastal cities and other countries with large wind.

High Strength Aluminum Sash Windows Performance

High-quality Sash windows feature a four-side compression sealing design. When the window sash is closed, it is firmly pressed against the surrounding sealing strips on the window frame. Compared to conventional Sash windows that rely on lateral sealing via wool strips, this design offers superior air tightness and water tightness, enabling more effective prevention of air and rainwater infiltration. As a result, it enhances thermal insulation performance, reduces energy consumption, and provides improved wind pressure resistance.

Four-side Compression Sealing Design Detail
If you want to customize different sizes and materials, we can provide a customization service for you with a minimum order quantity of just 1.
CONTACT US >>>
Custom Window Options Available
Temperature Difference Environment Simulation Test
A temperature difference environment ranging from -30℃ to +70℃ is simulated in an artificial climate chamber, and the temperature distribution and heat flow dynamics on the inner and outer surfaces of doors and Windows are continuously monitored.
Typhoon and Rain Simulation Test
Simulate a 12-level typhoon (wind speed ≥32m/s) + heavy rain (flood volume ≥4L/㎡·min) in the wind tunnel laboratory.
Thermal Insulation Profile Test

Thermal insulation to reduce heat conduction: The use of thermal insulation broken bridge aluminum alloy profiles can effectively reduce the heat conducted through the doors and Windows, so that the indoor temperature is more stable, warm in winter and cool in summer.

Energy saving: In winter, a window frame with insulation strips can reduce the heat lost through the window frame by 1/3; In summer, it can reduce energy loss more, reduce heating and cooling costs, in line with the concept of energy conservation and environmental protection.

Low-e Glass Insulation Detail
U Value ≤ 2.2 W/(㎡·K)
The three-layer insulating low-e glass and our whole welding technology enhance the integrity of the frame and reduce heat dissipation from the seams.
Weathering and Corrosion Resistance Testing

Corrosion resistance: Passed the 240-hour neutral salt spray test, suitable for high-humidity coastal areas.

Weather resistance: After 4000 hours of QUV accelerated aging test, the light retention rate is over 90%, and the color stability far exceeds that of ordinary paint (no fading or yellowing for 5-10 years).

International Quality and Safety Standards
Window Quality Certification 1
Window Quality Certification 2
Window Quality Certification 3

AS2047 - Australian window performance standard, UL - American product safety certification, ISO9001 - International quality management system certification, and NFRC - American window and door energy efficiency rating standard. Our products can meet your market demands.

Landsharp Global Projects Portfolio

These landsharp projects show that our doors and Windows not only have a wide influence in the domestic market, but also have achieved remarkable results in the international market.

Global Architecture Project Exhibition 1
Global Architecture Project Exhibition 2

We are not only manufacturers but also active participants in the global building materials industry. Our presence is frequently seen at leading international exhibitions, including the National Building Materials Exhibition in the United States and Australia’s Designbuild. By engaging directly with end markets, we continuously gain insights into the distinct requirements of customers in North America and Australia regarding energy efficiency, safety, and design aesthetics. This enables us to ensure that our products remain aligned with international trends and comply with prevailing standards.

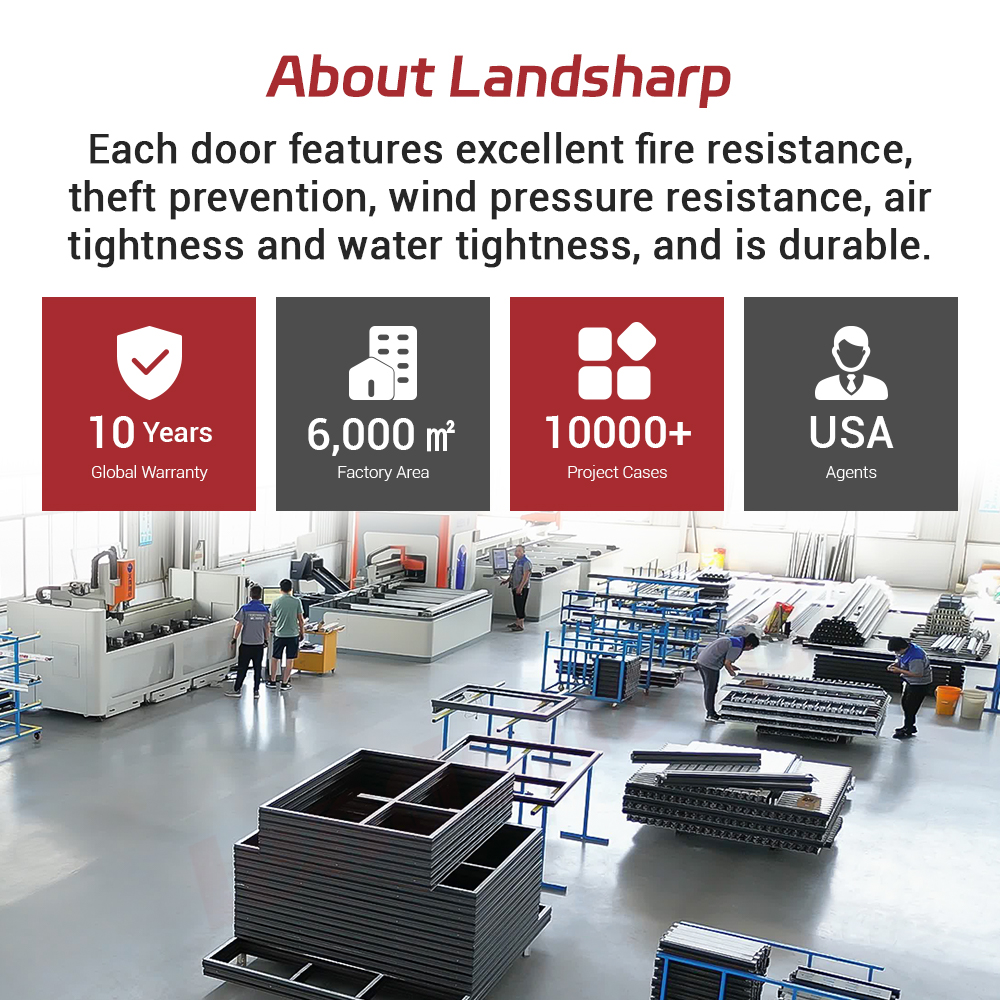

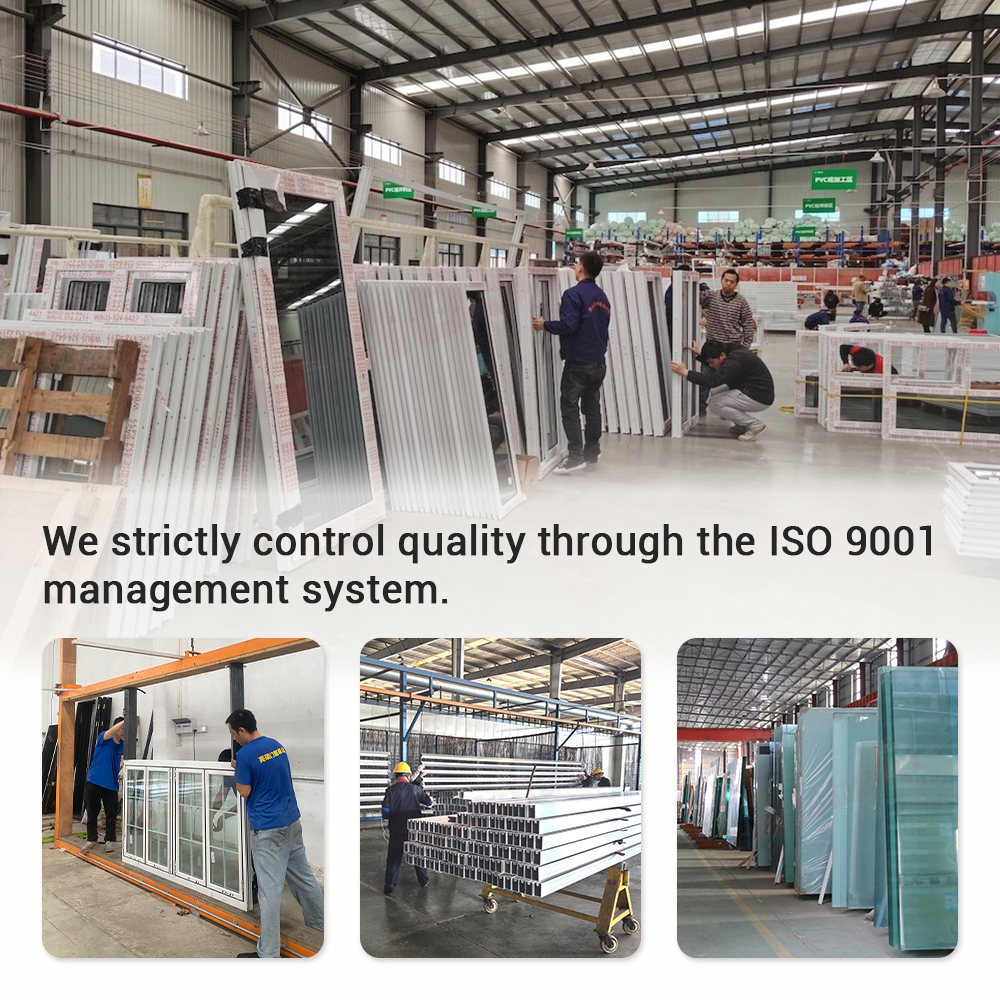

Manufacturing and Enterprise Strength
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are Industry and trade integration.
Q2: Why choose us?
We are a manufacturing enterprise certified on-site by Alibaba. We have 20 years of experience in exporting doors and windows. Due to our reliable quality and excellent service, we have undertaken a large number of government orders in China. Our products comply with US certification, Australian AS2047 certification, as well as the highest quality requirements specified in our strict quality control system.
Q3: Do you make customized products based on our design drawings?
Yes, we are a professional factory with an experienced engineering team to make custom products as customers request.
Q4: How long is your delivery time?
Generally it is 10-15 days.
Q5: Do you provide samples? Is it free or extra?
We supply free samples.
Q6: What is your main product?
We can supply the window, door, sunroom, curtain wall system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
Q7: What material are the window and doors of Landsharp made of?
We have aluminum and stainless steel to meet your requirements. Hardware and active components come with a warranty period of five years.

Accepted Delivery Terms: EXW, FCA, FOB, CFR, CIF, CIP, DES, DDP, DDU, Express Delivery

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
